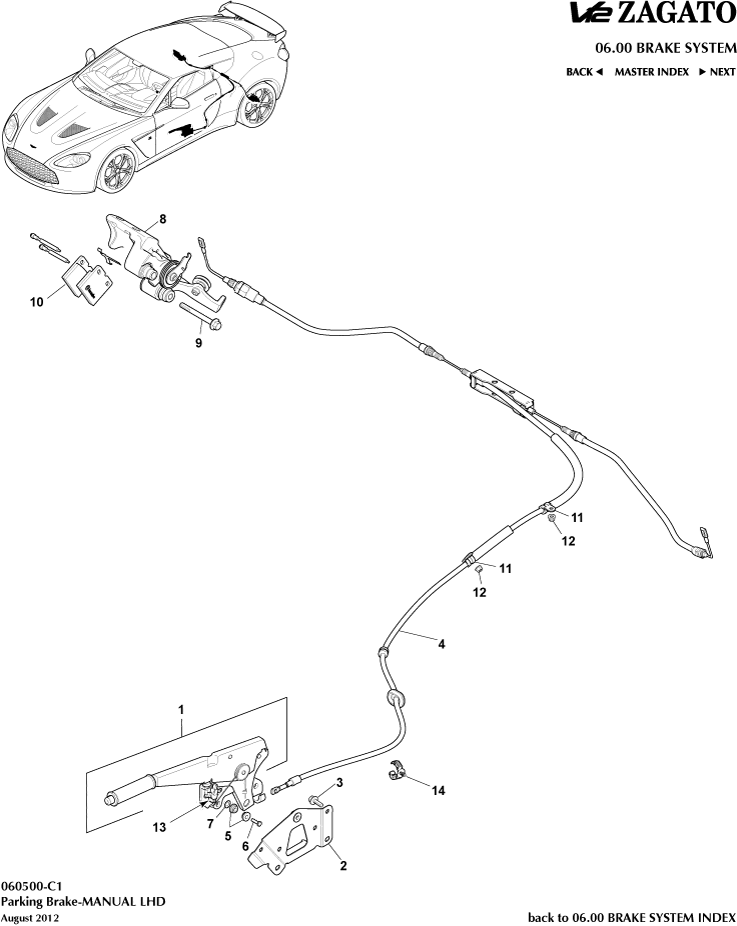

Parking Brake, LHD Parts
Pivot Pin, Handbrake Cable to Lever
New / New
Diagram No:
6
Available to order (2-3 days delay)
Clip, Vacuum Brake Pipe to Bracket
New / New
Diagram No:
14
Available to order (2-3 days delay)
'P' clip, brake cable support
New / New
Diagram No:
11
Available to order (2-3 days delay)
Parkbrake Caliper Assembly Rear LH
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
-
In stock
Parkbrake Caliper Assembly Rear RH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
8
In stock
Cable AND Conduit Assembly
New / New
Diagram No:
4
Available to order (2-3 days delay)
Pins, Pad Retaining
New / New
Diagram No:
-
Available to order (2-3 days delay)
Trunnion, Handbrake Cable to Lever
New / New
Diagram No:
5
Available to order (2-3 days delay)
Push on fix, h/brake cable to lever
New / New
Diagram No:
7
Available to order (2-3 days delay)
Lever Assembly, Handbrake, LHD
New / New
Diagram No:
1
Available to order (2-3 days delay)
Bolt M10x87 Hex flange, secures EPB
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
9
In stock
Boot, sliding pin
New / New
Diagram No:
-
Available to order (2-3 days delay)
KIT, BRAKE PADS, PARKING
New / New
Diagram No:
10
Available to order (2-3 days delay)
Bracket Assembly, Handbrake Lever, LHD
New / New
Diagram No:
2
Available to order (2-3 days delay)
Spring, anti rattle
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
-
In stock
HANDBRAKE SWITCH (RHD)
New
In stock
