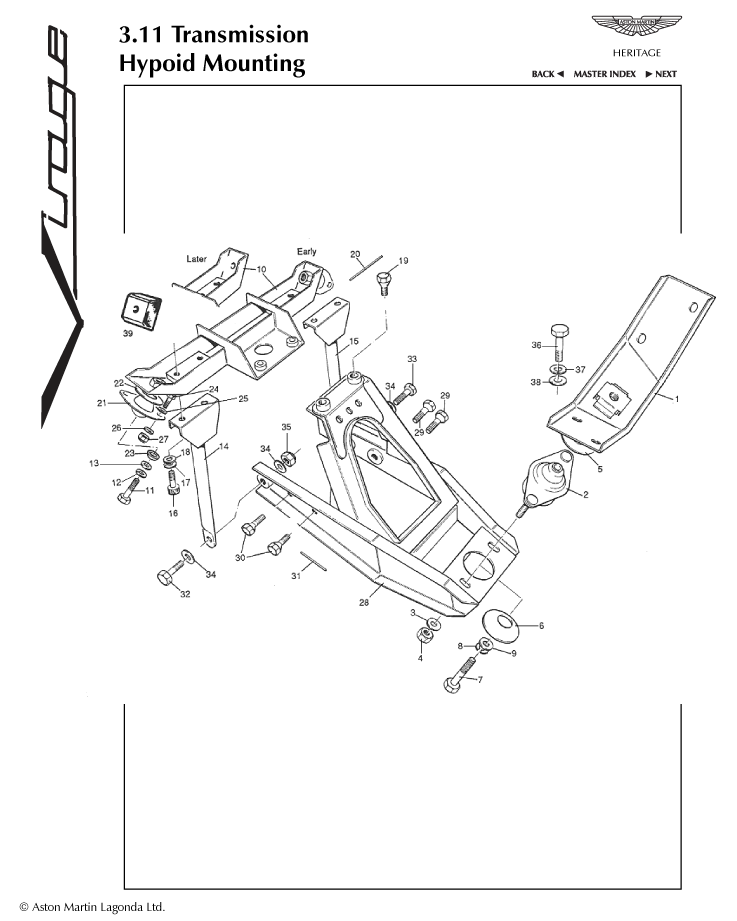

Hypoid Mounting Parts
Lockwire, stainless steel, 1 mm, caliper attachment
New / New
Diagram No:
20
Quantity:
A/R
Available to order (2-3 days delay)
Capscrew, M10 x 25
New / New
Diagram No:
16
Quantity:
4
Available to order (2-3 days delay)
Bolt, M10 x 50
New / New
Diagram No:
33
Quantity:
1
Available to order (2-3 days delay)
Screw, M10 x 40
New / New
Diagram No:
32
Quantity:
1
Available to order (2-3 days delay)
Screw, M12 x 25
New / New
Diagram No:
36
Quantity:
4
Available to order (2-3 days delay)
Screw, M8 x 20, blanks off clutch master cyl position
New
In stock
Nut, Nyloc, M8, caliper mounting to De-dion beam
New
Diagram No:
27
Quantity:
4
In stock
Screw, M8 x 25, Mounting bracket to bulkhead
New / New
Diagram No:
24
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M12, Gearbox to bellhousing
New / New
Diagram No:
38
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, M10, fuel tank strap bracket attach
New / New
Diagram No:
18
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M12
New / New
Diagram No:
37
Quantity:
4
Available to order (2-3 days delay)
Washer, spring, M10, fuel tank strap bracket attach
New / New
Diagram No:
17
Quantity:
4
Available to order (2-3 days delay)
Nut, Nyloc, M10, 'P' clip to bracket
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Bevelled washer
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 5/16" ID x 1" OD
New / New
Diagram No:
26
Quantity:
4
Available to order (2-3 days delay)
Screw, 7/16" UNF x 1"
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Screw, hypoid to mounting bracket
New / New
Diagram No:
19
Quantity:
4
Available to order (2-3 days delay)
Screw, 7/16" UNC x 1 1/2"
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
Bevelled washer
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Metalastik mounting - RH
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Bolt, 7/16" UNF x 3"
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Carrier assembly, differential mounting
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Bevelled washer
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Cross-member assembly, differential mounting, rear
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Tapped plate
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
Differential mounting bracket assembly, front
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Support tube assembly, differential mounting RH
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Support tube assembly, differential mounting, LH
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Mounting assembly, final drive
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF - water pump to timing case
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, 7/16" UNC, Adaptor ring to block
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 5/16, mtg rubber attach to rad lower panel
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, 7/16", gearbox to cylinder block
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
