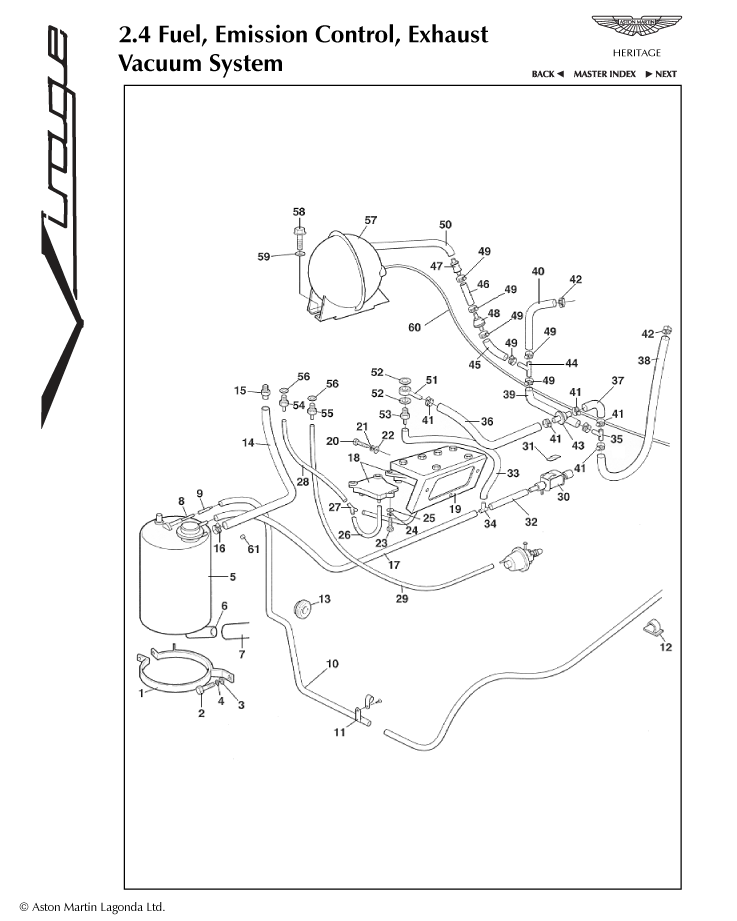

Vacuum System Parts
Nipple, 1/4" BSP, Plenum base to purge line
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Absolute pressure sensor
New / New
Diagram No:
18
Quantity:
2
Available to order (2-3 days delay)
Tee piece, 4-4-4, plenum to vacuum valve
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Restrictor, inside hose, item 14, at carbon can end
New / New
Diagram No:
61
Quantity:
1
Available to order (2-3 days delay)
Banjo bolt assembly
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Assembly, choke union to A.P.S.
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Choke union assembly
New / New
Diagram No:
55
Quantity:
1
Available to order (2-3 days delay)
Nipple, 3/8" BSP, Plenum base to purge line
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket assembly, carbon canister
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket assy, absolute pressure sensor
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
'Y' connection
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket, vacuum valve
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
'P' clip, nylon, 3/16", tube support
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Elbow
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Rivnut, M6, vacuum tank to wheelarch
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Clip, self adhesive, tank line
New / New
Diagram No:
12
Quantity:
2
Available to order (2-3 days delay)
Grommet, 1/4" ID
New / New
Diagram No:
13
Quantity:
2
Available to order (2-3 days delay)
Vacuum reservoir tank
New / New
Diagram No:
57
Quantity:
1
Available to order (2-3 days delay)
Non-return valve, plastic case
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Spacer, A.P.S bracket to bulkhead
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Screw, M6 x 25, stop block to bracket
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Hose clip, 12 - 22 mm, fuel breather hoses
New / New
Diagram No:
42
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M6, A.P.S bracket to bulkhead
New / New
Diagram No:
22
Quantity:
3
Available to order (2-3 days delay)
Reducing adaptor, 6mm to 4mm
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
'O' clip, hose to pressure regulator
New / New
Diagram No:
49
Quantity:
4
Available to order (2-3 days delay)
Vacuum hose, tee to vacuum pipe, 11/32" diameter, 1ft long
New / New
Diagram No:
7
Quantity:
A/R
Available to order (2-3 days delay)
Hose clip, elbow to hose
New / New
Diagram No:
16
Quantity:
6
Available to order (2-3 days delay)
Screw, M6 x 12 - Bracket to plenum LH side
New / New
Diagram No:
58
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M6, cup retainer to bracket
New / New
Diagram No:
4
Quantity:
2
Available to order (2-3 days delay)
Hose clip, 'Oetiker' type
New / New
Diagram No:
41
Quantity:
8
Available to order (2-3 days delay)
Vacuum hose, 7/32" ID x 3" long, valve to reducer
New
In stock
Tee piece, 6mm nylon
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Tube, polyvon, 1/8" dia, vac valve to carbon can 'Y'
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Tee piece, Nylon, 10-6-10
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
'P' clip, 1/4" nylon, tank line
New / New
Diagram No:
11
Quantity:
6
Available to order (2-3 days delay)
Hose
New / New
Diagram No:
14
Quantity:
A/R
Available to order (2-3 days delay)
Grommet, 3/8" bore
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw, M6 x 30, A.P.S bracket to bulkhead
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Nut, Nyloc, M6, support tube assembly to 'A' Post
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Tubing, Nylaflex, pressure/vac valve to tee piece
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Breather tube, tank line
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
'P' clip, 3/8" Nylon, for bulbholder
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Setscrew, M6 x 16
New / New
Diagram No:
20
Quantity:
3
Available to order (2-3 days delay)
Tee piece, Nylon, 10-10-10
New
Diagram No:
35
Quantity:
1
In stock
Washer, plain, M6, interlock cable to steering column
New
Available to order (2-3 days delay)
Washer, spring, M6, sensor attach to vertical link
New / New
Diagram No:
21
Quantity:
3
Available to order (2-3 days delay)
Adaptor, carbon canister to tank line
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Carbon canister
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Copper washer, Banjo to slave cylinder
New / New
Diagram No:
56
Quantity:
2
Available to order (2-3 days delay)
Vacuum valve, air conditioning
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
