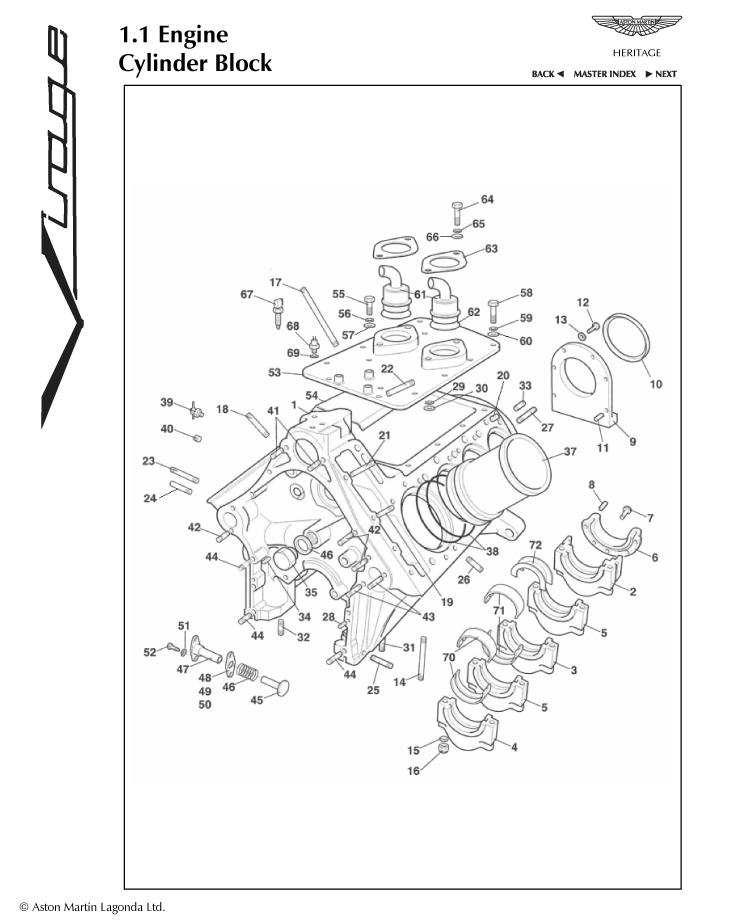

Cylinder Block Parts
'O' Ring, Cylinder Liner
New / New
Diagram No:
38
Quantity:
16
Available to order (2-3 days delay)
Screw, Durloc, M6 x 12. Baffle plate to valley plate
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Core plug, 3/4" cylinder block
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Plug, 1/4" BSP
New / New
Diagram No:
40
Quantity:
2
Available to order (2-3 days delay)
Dowel, 11/32" x 1"
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Screw,1/4" UNC x l" Valley plate to block
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
'O' Ring, Breather
New / New
Diagram No:
62
Quantity:
2
Available to order (2-3 days delay)
Stud, 3/8" UNC/UNF. Cylinder head
New / New
Diagram No:
22
Quantity:
2
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF. Compressor bracket
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Loctite, plenum chamber top to base
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Stud, 3/8" UNC/UNF x 2.75" Compressor bracket
New / New
Diagram No:
23
Quantity:
2
Available to order (2-3 days delay)
Dowel, 1/4" Dia x 1/2" Head location
New / New
Diagram No:
20
Quantity:
4
Available to order (2-3 days delay)
Loctite 648, trumpets to inlet manifolds
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF. RH cylinder head
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF. Alternator bracket
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Loctite 270 studlock, red
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Loctite 518. Clamp plate to valley plate
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Loctite, Superflex SL, white silicone
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Dowel, 1 1/32" x 1" long
New / New
Diagram No:
8
Quantity:
2
Available to order (2-3 days delay)
Washer, spring, M5 boot latch, plate & sw bracket to chassis
New / New
Diagram No:
51
Quantity:
2
Available to order (2-3 days delay)
Plug, 3/4" BSP Oil gallery ends
New / New
Diagram No:
35
Quantity:
2
Available to order (2-3 days delay)
Shim, 0.064" thick
New / New
Diagram No:
50
Quantity:
A/R
Available to order (2-3 days delay)
Stud, Main Bearing
New / New
Diagram No:
14
Quantity:
10
Available to order (2-3 days delay)
Nut, l/2" UNF, hex head
New / New
Diagram No:
16
Quantity:
10
Available to order (2-3 days delay)
Sealant, oilway blanking plug to cylinder head
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Hermetite, green Oil gallery plugs
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Dowel, 0.4980" x 1" Block/bell housing
New / New
Diagram No:
33
Quantity:
2
Available to order (2-3 days delay)
Plug-socket, 5/8" BSP Oil gallery top
New / New
Diagram No:
29
Quantity:
2
Available to order (2-3 days delay)
Screw, socket, button head 2BA x 5/8" long
New / New
Diagram No:
7
Quantity:
4
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNFx 1.75" Oil pump
New / New
Diagram No:
31
Quantity:
2
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 2.87" Timing cover attach
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 3.12" Timing cover attach
New / New
Diagram No:
41
Quantity:
2
Available to order (2-3 days delay)
Washer, 3/4" copper Plug, oil gallery
New / New
Diagram No:
36
Quantity:
2
Available to order (2-3 days delay)
Water tap, 1/4" BSP
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
Stud, 7/16" UNC/UNF x 2.125" Bell housing
New / New
Diagram No:
27
Quantity:
4
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 2.75" Timing cover attach
New / New
Diagram No:
19
Quantity:
6
Available to order (2-3 days delay)
Ring, dowel 0.187" ID - Block/chain tensioner
New / New
Diagram No:
34
Quantity:
2
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 2.1" Timing cover attach
New / New
Diagram No:
44
Quantity:
3
Available to order (2-3 days delay)
Stud, 5/16" UNC/UNF x 1 1/4" Engine mounting
New / New
Diagram No:
26
Quantity:
8
Available to order (2-3 days delay)
Washer, 29/32" x 1 1/4" Oil gallery top
New / New
Diagram No:
30
Quantity:
2
Available to order (2-3 days delay)
Socket setscrew, 1/4" UNC x 3/4"
New / New
Diagram No:
12
Quantity:
6
Available to order (2-3 days delay)
Stud, 5/16" x 4.625in. LH cylinder head
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Setscrew, 1/4" UNC x 3/4" Breather attachment
New / New
Diagram No:
64
Quantity:
4
Available to order (2-3 days delay)
Sender unit, water temperature
New / New
Diagram No:
67
Quantity:
2
Available to order (2-3 days delay)
COOLANT TEMPERATURE SENSOR SENDER UNIT - 1 PIN
New / New
In stock
Shim, relief valve
New / New
Diagram No:
49
Quantity:
A/R
Available to order (2-3 days delay)
Bush, relief valve
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
Spring, relief valve
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
Sealing washer, banjo
New / New
Diagram No:
69
Quantity:
1
Available to order (2-3 days delay)
Joint - oil pressure relief valve
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
