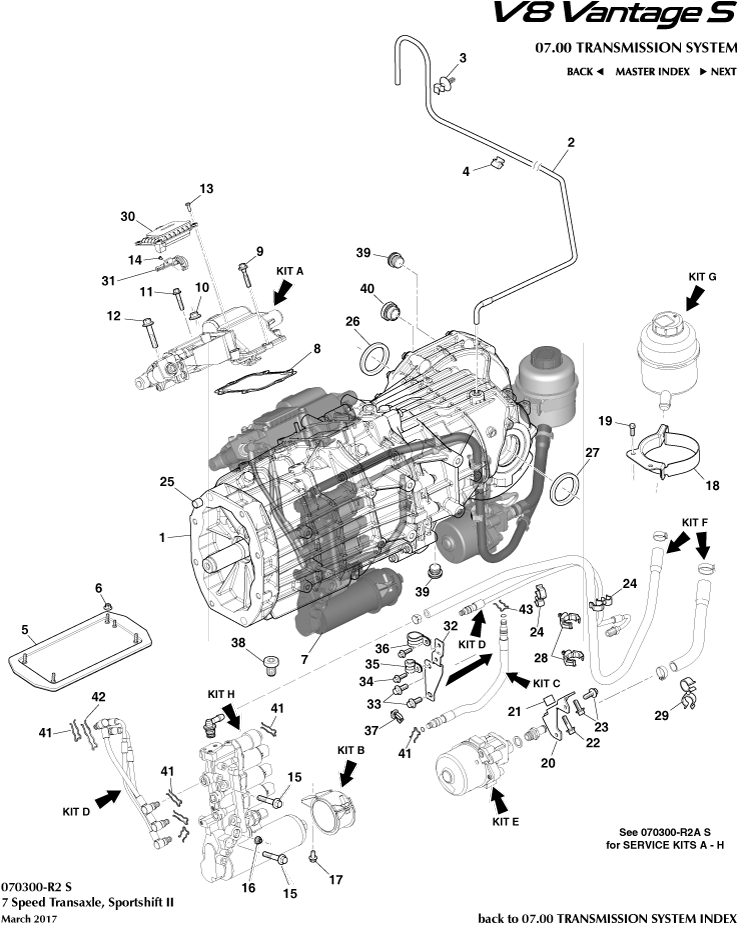

Transaxle, Manual, 7 spd Parts
Plug and Sealing Washer
New / New
In stock
Nut, M6, Hex Flange Head
New / New
Diagram No:
6
Available to order (2-3 days delay)
Fixings kit, Plinth Assy ROW
New / New
Diagram No:
22
Available to order (2-3 days delay)
Screw, M8x45, cable shifter attach
New / New
Diagram No:
15
Available to order (2-3 days delay)
Nut, flg, M6, rear wheelarch liner
New / New
Diagram No:
10
Available to order (2-3 days delay)
SCREW, M4x12, PAN HEAD, TORX
New / New
Diagram No:
13
Available to order (2-3 days delay)
Screw, M6 x 25, Hex Flange Head
New / New
Diagram No:
11
Available to order (2-3 days delay)
Clip, Vacuum Brake Pipe to Bracket
New / New
Diagram No:
28
Available to order (2-3 days delay)
Clip, Edge, Trans Breather Pipe
New / New
Diagram No:
4
Available to order (2-3 days delay)
Clip, Trans Breather Pipe
New / New
Diagram No:
3
Available to order (2-3 days delay)
Clip, Swivel 9.5-10.5+15-16mm
New / New
Diagram No:
24
Available to order (2-3 days delay)
Screw flg, M6x12, bump stop bracket
New / New
Diagram No:
17
Available to order (2-3 days delay)
GEAR SELECTOR GASKET
New
Diagram No:
8
In stock
Sensor Assembly, Trans Actuator Position
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
30
In stock
BRACKET ASSEMBLY, HYDRAULIC PUMP
New / New
Diagram No:
20
Available to order (2-3 days delay)
Pipe Clip - Long
New / New
Diagram No:
42
Available to order (2-3 days delay)
Magnet Assembly, Trans Actuator Position
New / New
Diagram No:
31
Available to order (2-3 days delay)
Pipe Clip - Small
New / New
Diagram No:
41
Available to order (2-3 days delay)
Oil, Manual Transmission, 1 ltr
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
-
In stock
'P' clip, brake cable support
New / New
Diagram No:
35
Available to order (2-3 days delay)
Screw, M8 x 50
New / New
Diagram No:
12
Available to order (2-3 days delay)
SIGHT GLASS & SEAL
New / New
Diagram No:
40
Available to order (2-3 days delay)
Plug with O Ring
New / New
Diagram No:
38
Available to order (2-3 days delay)
P CLIP
New / New
Diagram No:
36
Available to order (2-3 days delay)
ASM Pipe Bracket
New / New
Diagram No:
32
Available to order (2-3 days delay)
Bracket, Trans Reservoir
New / New
Diagram No:
18
Available to order (2-3 days delay)
Pipe Assembly, Transaxle Breather, Auto
New / New
Diagram No:
2
Available to order (2-3 days delay)
7 Speed Transaxle Assembly, Sportshift II
New / New
Diagram No:
1
Available to order (2-3 days delay)
OIL SEAL, OUTPUT SHAFT, LH
New / New
Diagram No:
26
Available to order (2-3 days delay)
Sportshift II Assembly, Complete
New / New
Diagram No:
7
Available to order (2-3 days delay)
OIL SEAL, OUTPUT SHAFT, LH
New / New
Diagram No:
27
Available to order (2-3 days delay)
SPACER BOSS
New / New
Diagram No:
21
Available to order (2-3 days delay)
Bolt M6x30 Hex Flange Head
New / New
Diagram No:
9
Available to order (2-3 days delay)
Clip, Swivel 17mm both ends
New / New
Diagram No:
29
Available to order (2-3 days delay)
Plastic Clip 5x6.5x2
New / New
Diagram No:
37
Available to order (2-3 days delay)
Screw, M3 x 6, Button Head
New / New
Diagram No:
14
Available to order (2-3 days delay)
Dowel, ring
New / New
Diagram No:
25
Available to order (2-3 days delay)
Clip - ASM Hose
New / New
Diagram No:
43
Available to order (2-3 days delay)
Fluid, Hydraulic, ASM-Cam, 1 Litre
New / New
Diagram No:
-
Available to order (2-3 days delay)
Cover Plate, Transmission Gearshift
New / New
Diagram No:
5
Available to order (2-3 days delay)
