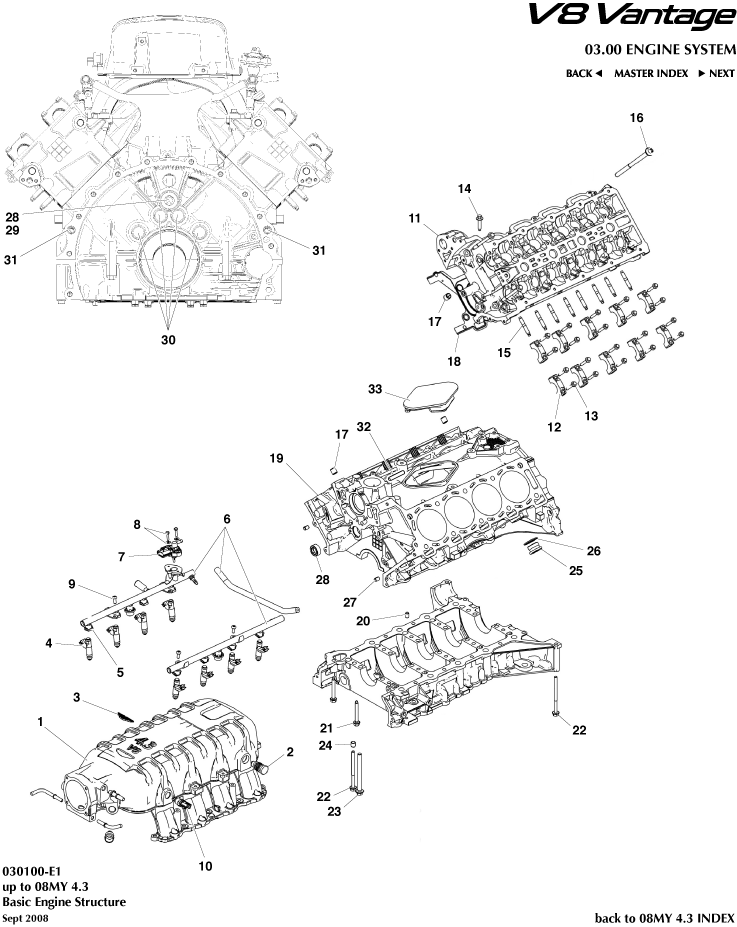

Engine Structure Parts
FUEL TEMPERATURE PRESSURE SENSOR
New
Available to order (2-3 days delay)
Used
Diagram No:
7
In stock
Screw M8x30 hex flg hd
New / New
Diagram No:
14
Available to order (2-3 days delay)
Stud, M8x16, M8x20, exh manif
New / New
Diagram No:
15
Available to order (2-3 days delay)
Bolt, M8x90 hex flg
New / New
Diagram No:
-
Available to order (2-3 days delay)
Seal, eng block to plug
New / New
Diagram No:
26
Available to order (2-3 days delay)
Bolt, flg, M6 x 35 pil
New / New
Diagram No:
13
Available to order (2-3 days delay)
Plug, flg, M30
New / New
Diagram No:
25
Available to order (2-3 days delay)
Plug, core, dia 28
New / New
Diagram No:
30
Available to order (2-3 days delay)
Plug, M30x1.5
New / New
Diagram No:
28
Available to order (2-3 days delay)
Screw, flg, M5x20
New / New
Diagram No:
8
Available to order (2-3 days delay)
Sensor, Air Charging Temperature
New / New
Diagram No:
10
Available to order (2-3 days delay)
Bolt, cylinder head
New / New
Diagram No:
16
Available to order (2-3 days delay)
Bearing, cap, camshaft, LH
New / New
Diagram No:
12
Available to order (2-3 days delay)
CLIP, FUEL INJECTOR
New / New
Diagram No:
5
Available to order (2-3 days delay)
Pipe, stub, breather, crank vent
New / New
Diagram No:
2
Available to order (2-3 days delay)
Bolt, M8x60, bedplate
New / New
Diagram No:
21
Available to order (2-3 days delay)
Dowel
New / New
Diagram No:
31
Available to order (2-3 days delay)
Fitting, heater hose
New / New
Diagram No:
32
Available to order (2-3 days delay)
Bolt, M8x110, outer bulkhead
New / New
Diagram No:
22
Available to order (2-3 days delay)
Dowel, cylinder head location
New / New
Diagram No:
17
Available to order (2-3 days delay)
Dowel, ring
New / New
Diagram No:
24
Available to order (2-3 days delay)
Dowel, sump to bedplate
New / New
Diagram No:
20
Available to order (2-3 days delay)
Bolt, M10x114, inner bulkhead
New / New
Diagram No:
23
Available to order (2-3 days delay)
Sleeve, cylinder bore
New / New
Diagram No:
-
Available to order (2-3 days delay)
Cover, block valley
New / New
Diagram No:
33
Available to order (2-3 days delay)
Manifold assembly, fuel injection (fuel rail)
New / New
Diagram No:
6
Available to order (2-3 days delay)
Manifold assembly, intake, upper
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
1
In stock
Injector assembly, fuel
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
4
In stock
Cylinder block and cap assy
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
19
In stock
Cylinder head assembly RH c/w Valves & Cams â Service Level
New / New
Diagram No:
11
Available to order (2-3 days delay)
Gasket, cylinder head, LH
New / New
Diagram No:
18
Available to order (2-3 days delay)
Gasket, cylinder head, RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Short block
New / New
Diagram No:
-
Available to order (2-3 days delay)
Cylinder head assembly LH c/w Valves & Cams â Service Level
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
-
In stock
Long block
New / New
Diagram No:
-
Available to order (2-3 days delay)
Engine assembly, remanufactured, V8 Vantage N400
New / New
Available to order (2-3 days delay)
Engine assembly, remanufactured, V8 Vantage
New / New
Available to order (2-3 days delay)
Manifold assembly, intake, upper
New / New
Diagram No:
-
Available to order (2-3 days delay)
Badge, wings, for nav blank
New / New
Diagram No:
3
Available to order (2-3 days delay)
