VANTAGE V8 Catalogue

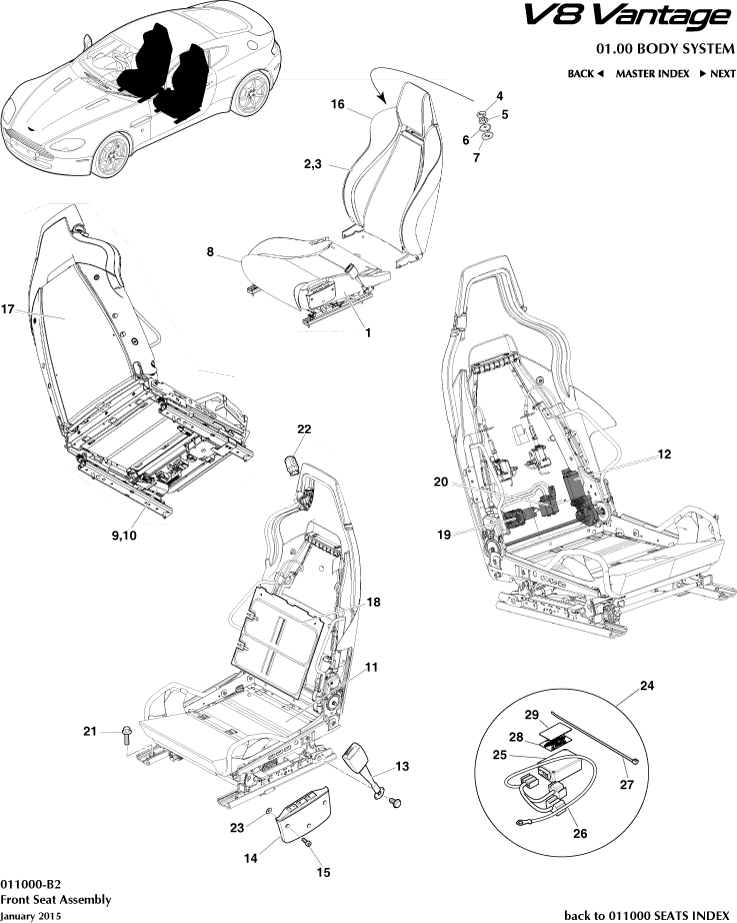

Front Seat

Front Seat Parts

FOAM ASSEMBLY, CUSHION, RH

7G43-9515-AD(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab, frame, front seat, LH, non memory

7G43-64803-AD(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Switch Housing, Seat Heater and Lumbar

7G43-647K22-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Module, passenger seat weight

7G43-625B00-CC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Foam, squab, RH

7G43-4D9513-AB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Front seat cushion frame, height adjusting, USA/Can

7G43-L60344-AD(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Screw, M6 x 16, socket head

7G43-N014740-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion frame harness

7G43-74-11070(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

FOAM ASSEMBLY, CUSHION, LH

7G43-9516-AD(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Seat switch assy, lumbar, lower

7G43-14D692-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Strap, squab release, manual override

7G43-605W00-ACW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab, frame, front seat, RH, non memory

7G43-64801-AE(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Switch, valance cover, 2 hole, LH, RH seat

7G43-061B54-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

FRAME ASSEMBLY, NON-HEIGHT ADJUST

7G43-L60344-CB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab, frame, front seat, LH, memory

7G43-64802-AD(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab, frame, front seat, RH, memory

7G43-64800-AE(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Switch, valance cover, 2 hole, RH, LH seat

7G43-061B54-BC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Sensor, With OCS (Occupant Sensing)

7G43-625B02-BA(AM)
New / New
Available to order (2-3 days delay)
New / Undamaged
In stock
Diagram No: -

Switch, valance cover, 3 hole

7G43-061B53-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Element, cushion heating

7G43-14D698-AB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Foam, squab, LH

7G43-4D9514-AB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Switch, seat heating

7G43-14D694-AA(AM)
New / New
Available to order (2-3 days delay)
New / Previously Fitted
In stock
Diagram No: -

Cover assy, front seat squab, LH

7G33-64573-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Guide, seat belt, upper, RH

7G33-611A10-ABW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Seat assy, front complete, LH

7G33-60009-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cover assy, front seat squab, RH

7G33-64572-AFW(AM)
New / New
Available to order (2-3 days delay)
Used / Undamaged
In stock
Diagram No: -

SEAT HEAT ASSEMBLY, SQUAB

7G43-14D696-AB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab assy, front seat trimmed, LH

7G33-60137-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Seat assy, front complete, RH

7G33-60008-AFW(AM)
New / New
Available to order (2-3 days delay)
Used / Undamaged
In stock
Diagram No: -

Sensor, seat track position

7G43-14B426-AB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Seat switch assy, lumbar, upper

7G43-14D693-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cover Assy, Front Seat Cushion, RH

7G33-62900-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion assy, front seat trimmed, LH

7G33-60051-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

FRAME ASSEMBLY, NON-HEIGHT ADJUST

7G33-V604K40-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cover Assy, Front Seat Cushion, LH

7G33-62901-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Guide, seat belt, upper, LH

7G33-611A11-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab assy, front seat trimmed, RH

7G33-60136-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion assy, front seat trimmed, RH

7G33-60050-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Screw, M8x25, frnt seat to bdy

706423(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 21

Frame, Cushion, 6 Way Height Adjusting, Passenger

6G33-L60344-BD(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Frame, Cushion, 6 Way Height Adjusting, Driver

6G33-L60344-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 9

Foam, cushion, RH

6G33-9515-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Foam, cushion, LH

6G33-9516-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab, frame, front seat, RH

6G33-64800-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 17

Cover assy, front seat squab, LH

6G33-64573-ACW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Switch Assembly, Seat Back Release

6G33-062A00-BB(AM)
New / New
Available to order (2-3 days delay)
Used / Undamaged
In stock
Diagram No: 22

SEAT BASE PHANTOM GREY LEATHER COVER

6G33-62900-ADW(AM)
New / New
Out of stock
Diagram No: 8

Pin, small, magnetic

6G33-61L16-CA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 5

Washer, large, magnetic

6G33-61L16-EA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 7

Cover assy, front seat squab, RH

6G33-64572-ACW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 3
