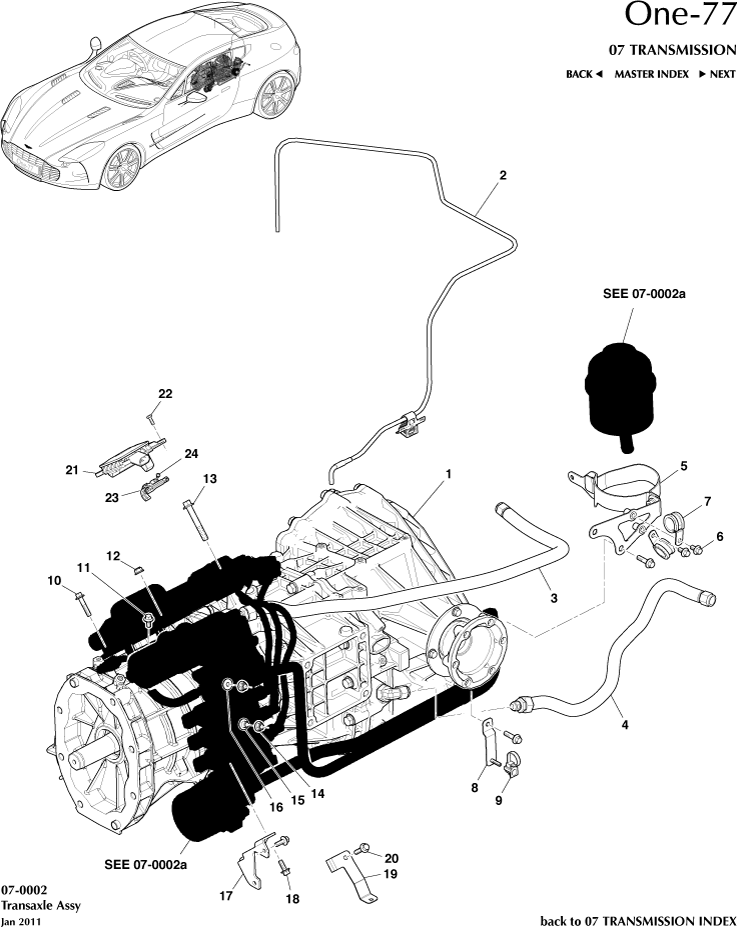

Transmission Assembly Parts
Fixings kit, Plinth Assy ROW
New / New
Diagram No:
10
Available to order (2-3 days delay)
Bolt, M8x55, Hex Flange Head
New / New
Diagram No:
13
Available to order (2-3 days delay)
Nut, flg, M6, rear wheelarch liner
New / New
Diagram No:
12
Available to order (2-3 days delay)
SCREW, M4x12, PAN HEAD, TORX
New / New
Diagram No:
22
Available to order (2-3 days delay)
Screw, M6 x 25, Hex Flange Head
New / New
Diagram No:
-
Available to order (2-3 days delay)
Screw, M6x12 hex flg hd
New / New
Diagram No:
6
Available to order (2-3 days delay)
Screw flg, M6x12, bump stop bracket
New / New
Diagram No:
11
Available to order (2-3 days delay)
Sensor Assembly, Trans Actuator Position
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
21
In stock
Isolator, Trans Shift Control
New / New
Diagram No:
15
Available to order (2-3 days delay)
BRACKET ASSEMBLY, HYDRAULIC PUMP
New / New
Diagram No:
17
Available to order (2-3 days delay)
Bracket assy, ASM Hyd Pump
New / New
Diagram No:
19
Available to order (2-3 days delay)
Magnet Assembly, Trans Actuator Position
New / New
Diagram No:
23
Available to order (2-3 days delay)
Isolator, Trans Shift Control
New / New
Diagram No:
16
Available to order (2-3 days delay)
Transaxle assy
New / New
Diagram No:
1
Available to order (2-3 days delay)
Retainer, Hellerman 20mm
New / New
Diagram No:
9
Available to order (2-3 days delay)
Screw, M3 x 6, Button Head
New / New
Diagram No:
24
Available to order (2-3 days delay)
'P' clip, 16mm
New / New
Diagram No:
7
Available to order (2-3 days delay)
Breather assy, Transaxle
New / New
Diagram No:
2
Available to order (2-3 days delay)
Pipe, Transaxle Cooler
New / New
Diagram No:
4
Available to order (2-3 days delay)
Bracket, ASM Pipe
New / New
Diagram No:
8
Available to order (2-3 days delay)
Pipe, Transaxle Cooler
New / New
Diagram No:
3
Available to order (2-3 days delay)
Bracket, ASM Resevoir
New / New
Diagram No:
5
Available to order (2-3 days delay)
