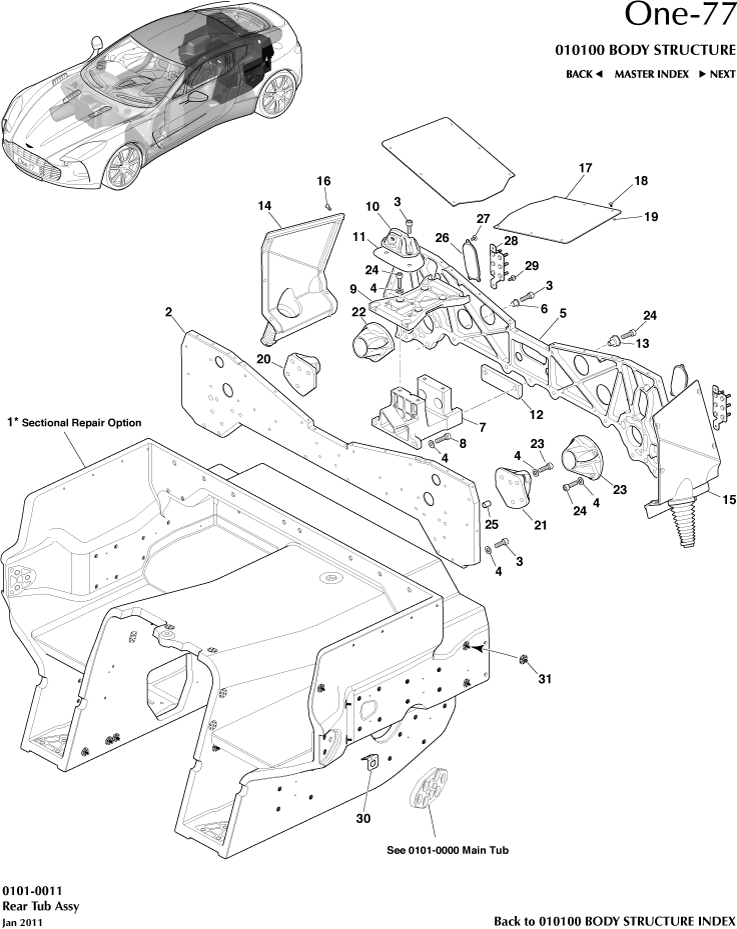

Rear Tub Assembly Parts
Screw, M6x12 hex flg hd
New / New
Diagram No:
29
Available to order (2-3 days delay)
Stud, Big Head Bonding, M5-1.0 x 12
New / New
Available to order (2-3 days delay)
Screw, M10 x 1.5 x 25
New / New
Diagram No:
3
Available to order (2-3 days delay)
Screw, M5 x 0.8 x 12, CHCS
New / New
Diagram No:
16
Available to order (2-3 days delay)
Screw, M5-0.80 x 08, BHSC
New / New
Diagram No:
18
Available to order (2-3 days delay)
Screw, M6-1.00 x 12 Flange BHCS
New / New
Diagram No:
27
Available to order (2-3 days delay)
Washer, M10, Flat ID10.5xOD20x2.0
New / New
Diagram No:
4
Available to order (2-3 days delay)
Screw, M10 x 1.5 x 35
New / New
Diagram No:
8
Available to order (2-3 days delay)
Screw, M10 x 1.5 x 30
New / New
Diagram No:
24
Available to order (2-3 days delay)
Spacer, Centre Damper Mount
New / New
Diagram No:
12
Available to order (2-3 days delay)
Rear Tub Bonded Assy
New / New
Diagram No:
1
Available to order (2-3 days delay)
Trim Panel, V brace Centre Node
New / New
Diagram No:
11
Available to order (2-3 days delay)
End Cover Assy, Rear Damper Tray, LH
New / New
Diagram No:
15
Available to order (2-3 days delay)
Window Panel, Rear Damper Tray
New / New
Diagram No:
17
Available to order (2-3 days delay)
Shear Sleeve
New / New
Diagram No:
6
Available to order (2-3 days delay)
Rocker Mount Rear RH, Rear Damper Tray
New / New
Diagram No:
22
Available to order (2-3 days delay)
Sleeve, Centre Damper Mount
New / New
Diagram No:
13
Available to order (2-3 days delay)
Shear Sleeve, ID 10.2 x 19
New / New
Diagram No:
25
Available to order (2-3 days delay)
Cover Plate, Rear Damper Centre Mount
New / New
Diagram No:
9
Available to order (2-3 days delay)
Spacer, Window Panel Mount
New / New
Diagram No:
19
Available to order (2-3 days delay)
Centre Mount, Rear Damper
New / New
Diagram No:
7
Available to order (2-3 days delay)
Rocker Mount Front RH, Rear Damper Tray
New / New
Diagram No:
20
Available to order (2-3 days delay)
Cover, Rocket Access, Rear Damper Tray
New / New
Diagram No:
26
Available to order (2-3 days delay)
End Cover Assy, Rear Damper Tray, RH
New / New
Diagram No:
14
Available to order (2-3 days delay)
Rear Plate, Rear Damper Tray
New / New
Diagram No:
5
Available to order (2-3 days delay)
Bracket, Rear Centre V Brace
New / New
Diagram No:
10
Available to order (2-3 days delay)
Rocker Mount Front LH, Rear Damper Tray
New / New
Diagram No:
21
Available to order (2-3 days delay)
Rocker Mount Rear LH, Rear Damper Tray
New / New
Diagram No:
23
Available to order (2-3 days delay)
Front Plate, Rear Damper Tray
New / New
Diagram No:
2
Available to order (2-3 days delay)
Bracket, Rear Brake Line Jumper Hose
New / New
Diagram No:
30
Available to order (2-3 days delay)
Plate, Rear Earth
New / New
Diagram No:
28
Available to order (2-3 days delay)
