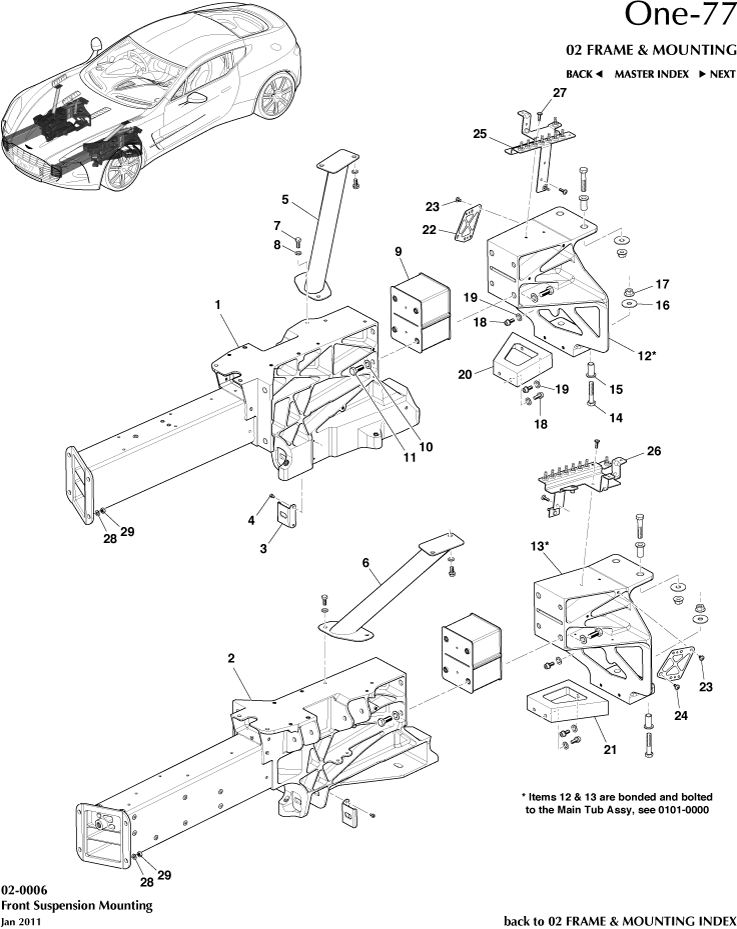

Front Structure Parts
Bolt, flg, M6 x 10, Module to Bracket
New / New
Diagram No:
23
Available to order (2-3 days delay)
Structure, Front Suspension Mounting LH
New / New
Diagram No:
2
Available to order (2-3 days delay)
Structure, Front Suspension Mounting RH
New / New
Diagram No:
1
Available to order (2-3 days delay)
Washer, ID8.4x OD16x1.6
New / New
Diagram No:
8
Available to order (2-3 days delay)
Washer, M12. ID13xOD24x2.5
New / New
Diagram No:
10
Available to order (2-3 days delay)
Washer, Flat ID13xOD40x2.5
New / New
Diagram No:
16
Available to order (2-3 days delay)
Screw, M5-0.8x8 SHCS
New / New
Diagram No:
4
Available to order (2-3 days delay)
Nut, M8-1.25, Hex, Class 8
New / New
Diagram No:
29
Available to order (2-3 days delay)
Washer, M8 Flat, ID 8.4 OD 16
New / New
Diagram No:
19
Available to order (2-3 days delay)
Screw, M8-1.25x20 SHCS
New / New
Diagram No:
18
Available to order (2-3 days delay)
Nut, M12x1.75 Hex Flg
New / New
Diagram No:
17
Available to order (2-3 days delay)
Screw, M8-1.25x20, Hex hd
New / New
Diagram No:
7
Available to order (2-3 days delay)
Screw, M12-1.75x60, Hex Hd
New / New
Diagram No:
14
Available to order (2-3 days delay)
Screw, M12-1.75x30, Hex Hd
New / New
Diagram No:
11
Available to order (2-3 days delay)
Structure, Front Tub Connection RH
New / New
Diagram No:
12
Available to order (2-3 days delay)
Bracket, J- Cam Bolt
New / New
Diagram No:
3
Available to order (2-3 days delay)
Plate, Mounting for Wiring Harness
New / New
Diagram No:
22
Available to order (2-3 days delay)
Support, Engine Bay Brace LH
New / New
Diagram No:
6
Available to order (2-3 days delay)
Structure, Under Exhaust LH
New / New
Diagram No:
21
Available to order (2-3 days delay)
Support, Engine Bay Brace RH
New / New
Diagram No:
5
Available to order (2-3 days delay)
Structure, Under Exhaust RH
New / New
Diagram No:
20
Available to order (2-3 days delay)
Sleeve, Top Hat
New / New
Diagram No:
15
Available to order (2-3 days delay)
Structure, Secondary Crash
New / New
Diagram No:
9
Available to order (2-3 days delay)
Bracket, Engine Bay LH
New / New
Diagram No:
26
Available to order (2-3 days delay)
Bracket, Engine Bay RH
New / New
Diagram No:
25
Available to order (2-3 days delay)
