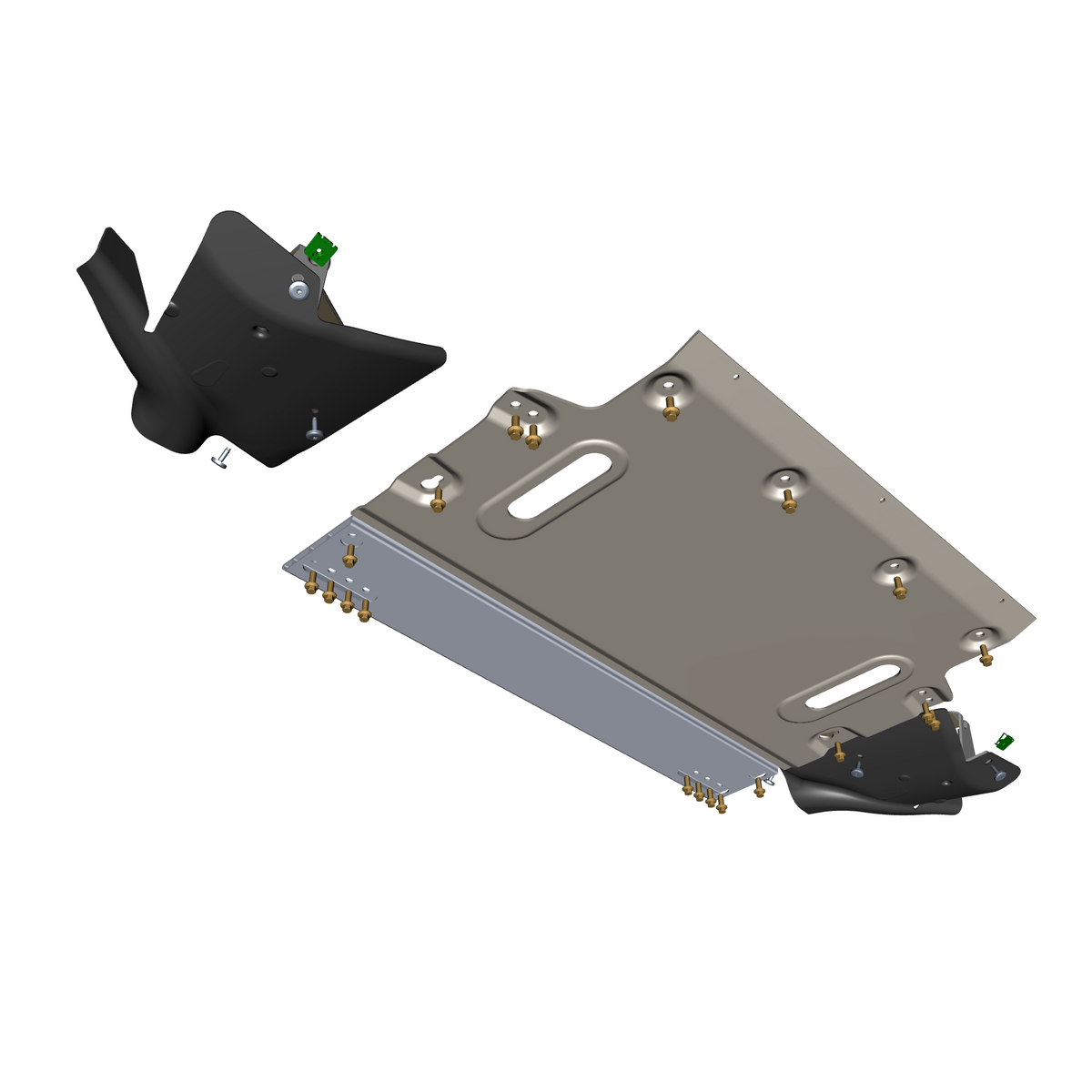

013402 Rear Undertray Parts
SCREW, M8x1.25x20, FLANGE HEX HEAD
New / New
Diagram No:
310
Available to order (2-3 days delay)
SHIELD, REAR BUMPER OPENING
New / New
Diagram No:
300
Available to order (2-3 days delay)
SHROUD, LOWER, LH
New / New
Diagram No:
320
Available to order (2-3 days delay)
SHROUD, LOWER, RH
New / New
Diagram No:
330
Available to order (2-3 days delay)
