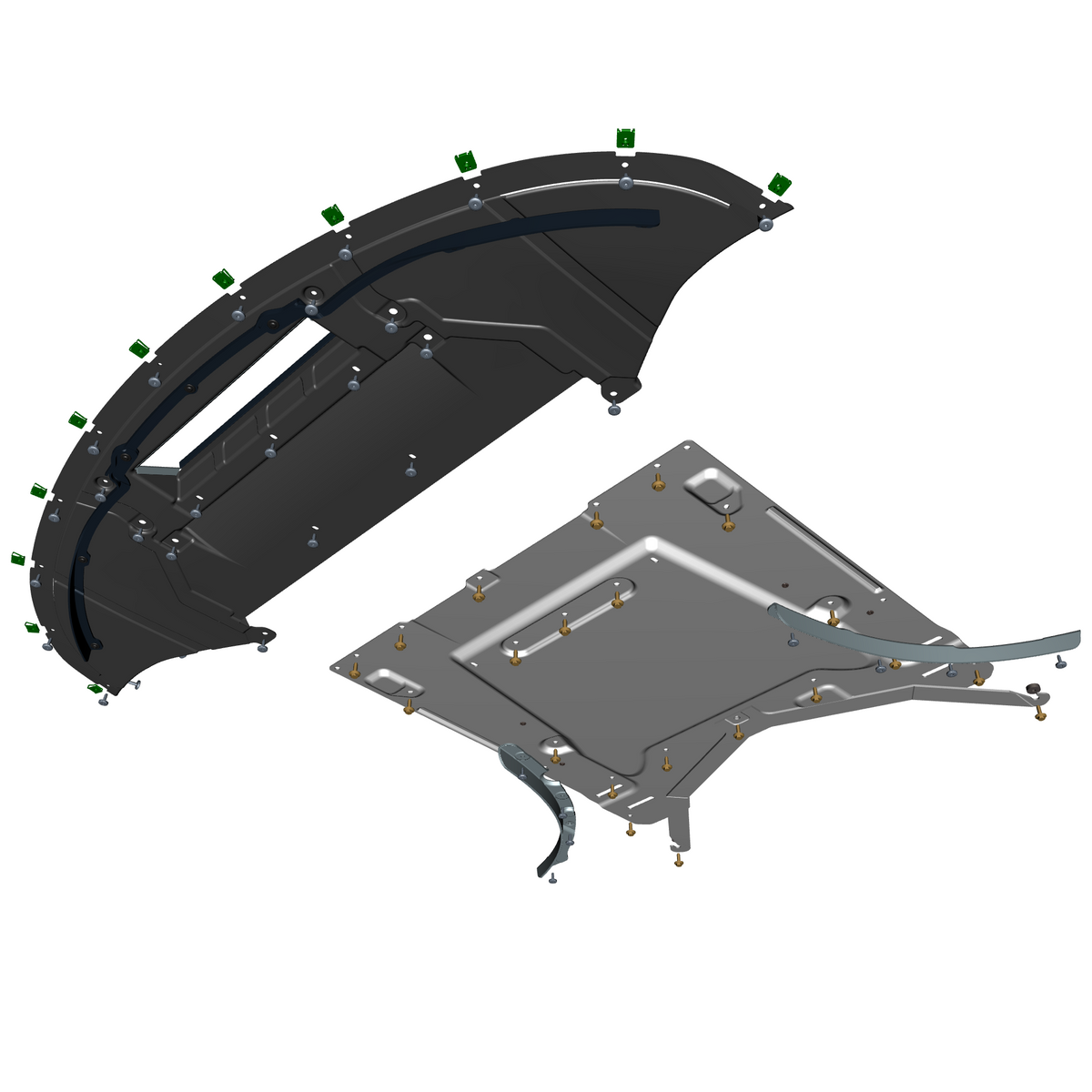

013400 Front Undertrays Parts
FRONT UNDERTRAY
New / New
Diagram No:
20
Available to order (2-3 days delay)
UNDERTRAY, FRONT MID
New / New
Diagram No:
50
Available to order (2-3 days delay)
VENTURI VANE, LH
New / New
Diagram No:
70
Available to order (2-3 days delay)
VENTURI VANE, RH
New / New
Diagram No:
80
Available to order (2-3 days delay)
BOLT/WASHER, M8x1.25x24.5
New
Diagram No:
60
Available to order (2-3 days delay)
