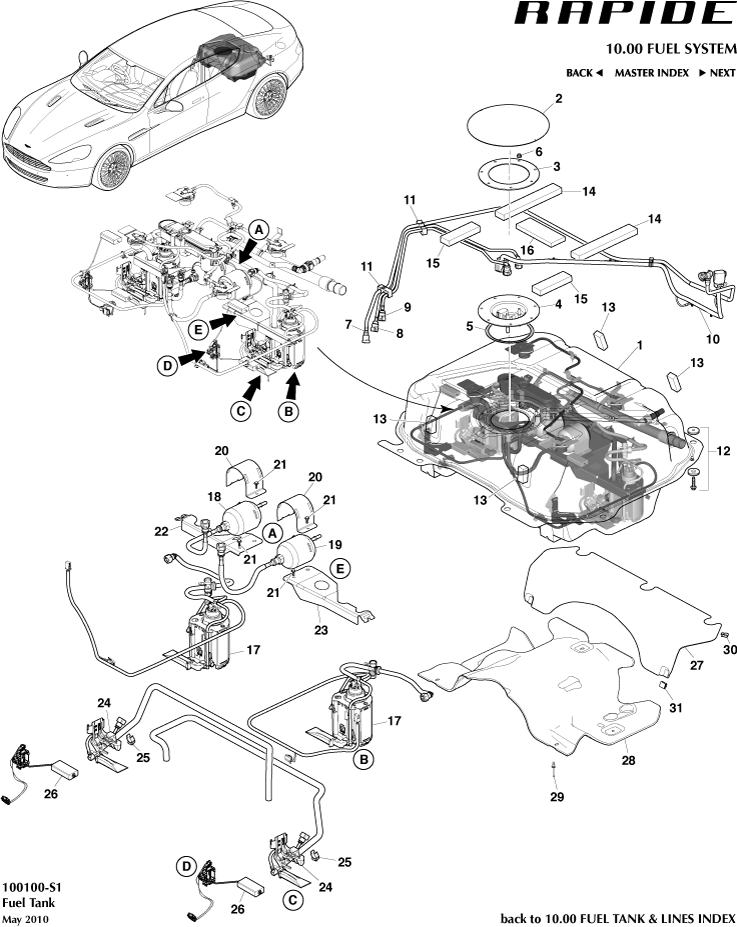

Fuel Tank Assy Parts
FUEL TANK COVER PLATE GASKET
New
Diagram No:
5
Available to order (2-3 days delay)
OIL COOLER HOSE CLIP
New / New
Diagram No:
25
Available to order (2-3 days delay)
FUEL TANK SENDER UNIT
New
Diagram No:
26
Available to order (2-3 days delay)
Nut, flg, M6, rear wheelarch liner
New / New
Diagram No:
6
Available to order (2-3 days delay)
RIVET, BLIND, 5.5x1.5-9, ALUMINIUM
New / New
Diagram No:
29
Available to order (2-3 days delay)
Bolt Assy, Fuel Tank Fixing
New / New
Diagram No:
12
Available to order (2-3 days delay)
Insulating Strip, Rubber, Rear
New / New
Diagram No:
14
Available to order (2-3 days delay)
Insulating Strip, Rubber
New / New
Diagram No:
15
Available to order (2-3 days delay)
Insulating Strip, Rubber, Centre
New / New
Diagram No:
16
Available to order (2-3 days delay)
Jet Pump Assembly
New / New
Diagram No:
24
Available to order (2-3 days delay)
Tube Assy, Fuel Supply R
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
8
In stock
Filter Assembly
New / New
Diagram No:
19
Available to order (2-3 days delay)
Hatch, Fuel Tank
New / New
Diagram No:
4
Available to order (2-3 days delay)
Bracket, Fuel Pump Mounting LH
New / New
Diagram No:
23
Available to order (2-3 days delay)
Tank Assembly, Fuel
New / New
Diagram No:
1
Available to order (2-3 days delay)
Tube Assy, Fuel Vapour Purge
New / New
Diagram No:
7
Available to order (2-3 days delay)
Heat Shield, Fuel Tank
New / New
Diagram No:
28
Available to order (2-3 days delay)
Tube Assy, Fuel Supply L
New / New
Diagram No:
9
Available to order (2-3 days delay)
Filter Assembly
New / New
Diagram No:
18
Available to order (2-3 days delay)
Bracket, Fuel Pump Mounting RH
New / New
Diagram No:
22
Available to order (2-3 days delay)
Fuel Pumps (2) Kit
New / New
Diagram No:
17
Available to order (2-3 days delay)
Clip, Tank Shield
New / New
Diagram No:
31
Available to order (2-3 days delay)
K CLIP, TANK SHIELD
New / New
Diagram No:
30
Available to order (2-3 days delay)
Harness, Fuel Tank Link
New / New
Diagram No:
10
Available to order (2-3 days delay)
Insulation, Boot Floor, Fuel Tank
New / New
Diagram No:
27
Available to order (2-3 days delay)
Bracket, Filter Assembly
New / New
Diagram No:
20
Available to order (2-3 days delay)
Bolt, M5 x 12, self locking
New / New
Diagram No:
21
Available to order (2-3 days delay)
Clip, fuel line to engine
New / New
Diagram No:
11
Available to order (2-3 days delay)
Plate Assy, Fuel Tank Cover
New / New
Diagram No:
2
Available to order (2-3 days delay)
Foam Pad, tank front, upper
New / New
Diagram No:
13
Available to order (2-3 days delay)
Plate, clamp, fuel tank
New / New
Diagram No:
3
Available to order (2-3 days delay)
