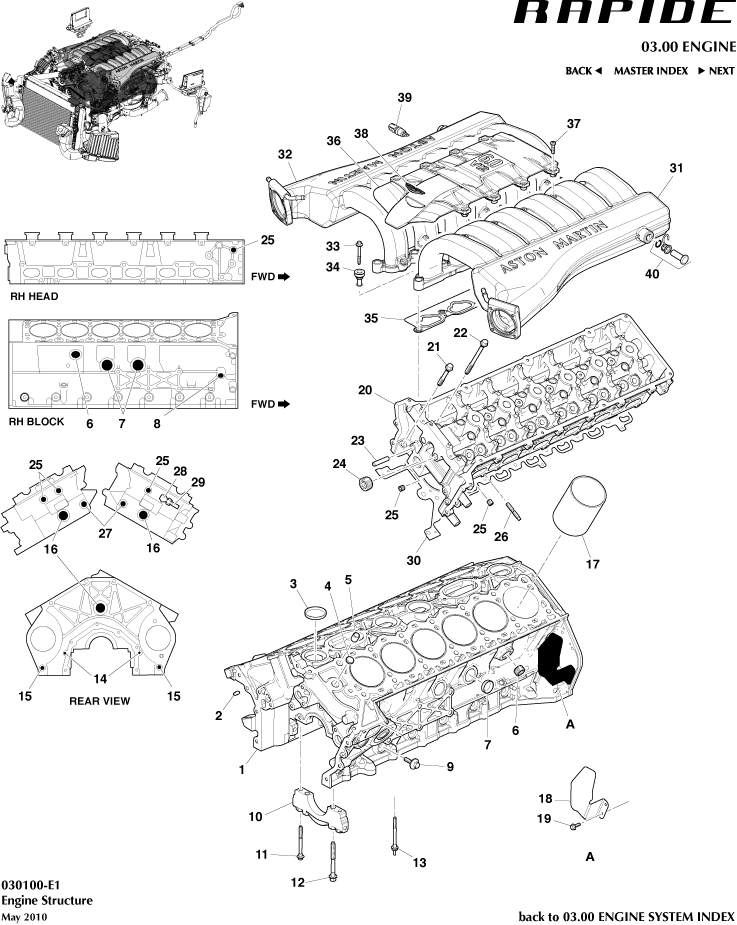

Engine Structure Parts
INLET MANIFOLD GASKETS V12 MODELS - PK2
New
Diagram No:
35
Available to order (2-3 days delay)
OIL PRESSURE SENSOR SWITCH
New
In stock
ENGINE CORE PLUG 52.6mm
New / New
In stock
BALLAST ASSEMBLY, HID SERVICE KIT
New / New
Diagram No:
1
Available to order (2-3 days delay)
Engine Assembly, 6.0 ltr V12, New
New / New
Diagram No:
nan
Available to order (2-3 days delay)
Sleeve, Cylinder Bore
New / New
Diagram No:
17
Available to order (2-3 days delay)
Cartridge Assembly
New / New
Diagram No:
40
Available to order (2-3 days delay)
Plug, 3/4 14 PTF, Internal Hex
New / New
Diagram No:
6
Available to order (2-3 days delay)
STUD, M8x13.6+16, HEX SHOULDER 10
New / New
Diagram No:
26
Available to order (2-3 days delay)
BOLT, M8x32, FLG HD
New / New
Diagram No:
21
Available to order (2-3 days delay)
SCREW, M6x25, PAN INT LOB
New / New
Diagram No:
37
Available to order (2-3 days delay)
BOLT, M6x1.0x47, PT HEX FLG HD
New / New
Diagram No:
33
Available to order (2-3 days delay)
SCREW M6x12 FLG
New
Diagram No:
19
In stock
Sensor, Air Charging Temperature
New / New
Diagram No:
39
Available to order (2-3 days delay)
Pin, M6 X 16 dowel chamfer head
New / New
Diagram No:
14
Available to order (2-3 days delay)
Engine Assembly, 6.0 ltr V12, Remanufactured
New / New
Available to order (2-3 days delay)
Cylinder Head Assembly, LH
New / New
Diagram No:
20
Available to order (2-3 days delay)
Heatshield, Crankshaft Timing Sensor
New / New
Diagram No:
18
Available to order (2-3 days delay)
Manifold Assembly, Inlet, RH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
32
In stock
Support, Inlet Manifold
New / New
Diagram No:
36
Available to order (2-3 days delay)
Manifold Assembly, Inlet, LH
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
31
In stock
Cylinder Head Assembly, RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Dowel, 14.5x11
New / New
Diagram No:
15
Available to order (2-3 days delay)
Bolt, M10x151.5, Cylinder Head to Block
New / New
Diagram No:
22
Available to order (2-3 days delay)
Plug, 3/8â - 18 socket head
New / New
Diagram No:
27
Available to order (2-3 days delay)
ISOLATOR, INLET MANIFOLD
New / New
Diagram No:
34
Available to order (2-3 days delay)
WING BADGE ENGINE MANIFOLD - GREEN
New
Diagram No:
38
In stock
Bolt, Crankshaft Main Bearing Cap (side)
New / New
Diagram No:
9
Available to order (2-3 days delay)
Bolt, Crankshaft Main Bearing Cap
New / New
Diagram No:
11
Available to order (2-3 days delay)
Bolt, Crankshaft Main Bearing Cap
New / New
Diagram No:
12
Available to order (2-3 days delay)
Fitting, Oil Pressure Sender Switch
New / New
Diagram No:
28
Available to order (2-3 days delay)
Gasket, Cylinder Head, LH
New / New
Diagram No:
30
Available to order (2-3 days delay)
Gasket, Cylinder Head, RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Cap, Crankshaft Main Bearing
New / New
Diagram No:
10
Available to order (2-3 days delay)
Stud bolt, bearing caps, outer
New / New
Diagram No:
13
Available to order (2-3 days delay)
Plug, 19.35 dia, Expansion cup
New / New
Diagram No:
4
Available to order (2-3 days delay)
Plug, 1-11.5x18
New / New
Diagram No:
24
Available to order (2-3 days delay)
Dowel, 10x49.25
New / New
Diagram No:
23
Available to order (2-3 days delay)
Plug, 3/4-14 PTF, Internal Hex
New / New
Diagram No:
8
Available to order (2-3 days delay)
ENGINE CORE PLUG, 1.26 CUP (32.0mm)
New / New
In stock
Pin, 16x19, Hollow Dowel
New / New
Diagram No:
5
Available to order (2-3 days delay)
Pin, 8.0x18.0, Dowel
New / New
Diagram No:
2
Available to order (2-3 days delay)
