DB9 Catalogue

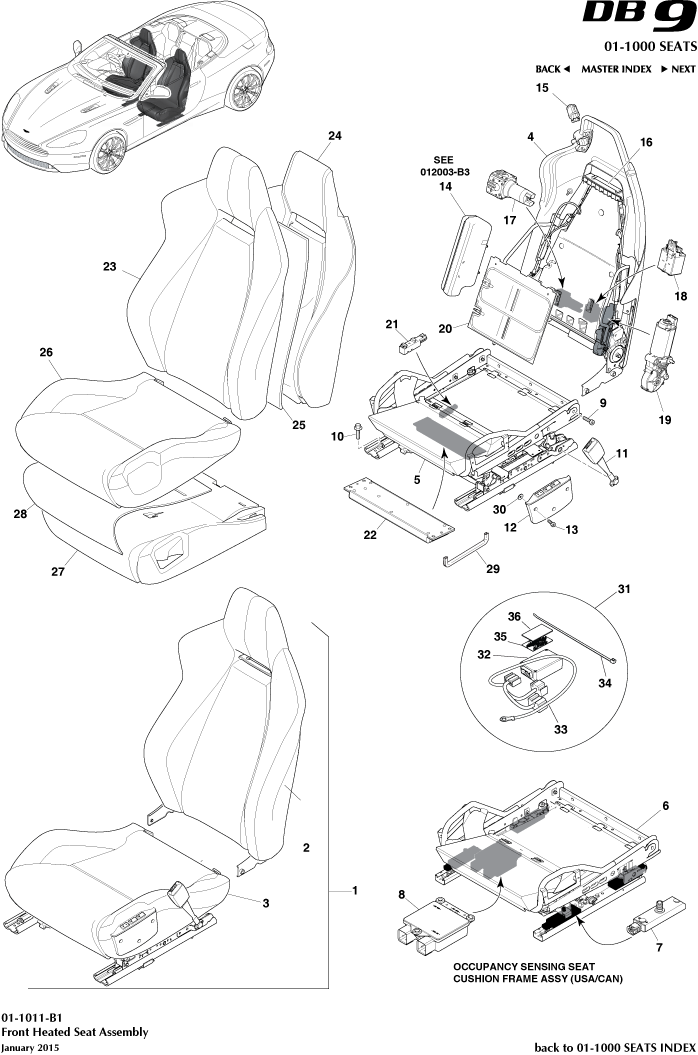

Front Heated Seats

Front Heated Seats Parts

Module, passenger seat weight

7G43-625B00-CC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 8

Screw, M6 x 16, socket head

7G43-N014740-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 13

Element, Seat Base Heater

7G43-14D698-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 28

Strap, squab release, manual override

7G43-605W00-ACW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 16

FRAME ASSEMBLY, NON-HEIGHT ADJUST

7G43-L60344-CB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Sensor, With OCS (Occupant Sensing)

7G43-625B02-BA(AM)
New / New
Available to order (2-3 days delay)
New / Undamaged
In stock
Diagram No: 7

Switch Pack Assembly, Lumbar, RH

7G43-14E693-BA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 12

Switch Pack Assembly, Lumbar, LH

7G43-14E693-AA(AM)
New / New
Available to order (2-3 days delay)
New / Undamaged
In stock
Diagram No: -

SEAT HEAT ASSEMBLY, SQUAB

7G43-14D696-AB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 25

Sensor, seat track position

7G43-14B426-AB(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 21

FRAME ASSEMBLY, NON-HEIGHT ADJUST

7G33-V604K40-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 6

Screw, M8x25, frnt seat to bdy

706423(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 10

Cover Assembly, Front Seat Squab, LH

GG43-64573-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab Assembly, Front Seat Trimmed, RH

GG43-60136-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cover Assembly, Front Seat Squab, RH

GG43-64572-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Seat Assembly, Front Complete, LH

GG43-60009-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Squab Assembly, Front Seat Trimmed, LH

GG43-60137-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion Assembly, Front Seat Trimmed, RH

GG43-60050-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cover Assembly, Front Seat Cushion, RH

GG43-62900-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion Assembly, Front Seat Trimmed, LH

GG43-60051-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cover Assembly, Front Seat Cushion, LH

GG43-62901-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Seat Assembly, Front Complete, RH

GG43-60008-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Service Kit, Module, Seat Heater

FG43-632B22-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 31

Harness, Seat Supervisor Module

FG43-14B510-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 33

Supervisor Module, Seat Heater

FG43-18B512-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 32

Edge Protection, Switch Harness, 150mm

DAC4027/10(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 29

Cover Assembly, Front Seat Squab, LH

CG43-64573-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Seat Assembly, Front Complete, RH

CG43-60008-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 1

Squab Frame, Front Seat, RH, Memory

CG43-64800-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 4

Cover Assembly, Front Seat Cushion, LH

CG43-62901-AAW(AM)
New / New
Available to order (2-3 days delay)
Used / Undamaged
In stock
Diagram No: -

Squab Frame, Front Seat, LH, Memory

CG43-64802-AC(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion Assembly, Front Seat Trimmed, RH

CG43-60050-ABW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 3

Cover Assembly, Front Seat Squab, RH

CG43-64572-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 23

Squab Assembly, Front Seat Trimmed, LH

CG43-60137-ACW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cover Assembly, Front Seat Cushion, RH

CG43-62900-AAW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 26

Squab Assembly, Front Seat Trimmed, RH

CG43-60136-ACW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 2

Seat Assembly, Front Complete, LH

CG43-60009-AFW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion Assembly, Front Seat Trimmed, LH

CG43-60051-ABW(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Cushion Frame Assembly, Front Seat, Height Adjusting

BG43-L60344-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 5

FOAM ASSEMBLY, SQUAB, LH

AG43-4D9514-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 24

Valve, Lumbar Support Air

AG43-62690-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 18

Pump, Lumbar Support Air

AG43-65530-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 17

Bladder, Lumbar Support Air

AG43-603B13-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 20

FOAM ASSEMBLY, SQUAB, RH

AG43-4D9513-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

SEAT TILT & GLOVEBOX SWITCH GLASS

AD33-062A00-BB-(AMB)-3141
New / New
In stock

Foam, Cushion, LH

8G43-9516-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: -

Foam, cushion, RH

8G43-9515-AA(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 27

WASHER, M6, LARGE OD, BLACK

697517-PK(AM)
New
In stock
Diagram No: 30

VELCRO, 50x50, LOOPS

6102600572(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 35

VELCRO, 50x50, HOOKS

6102600505(AM)
New / New
Available to order (2-3 days delay)
Diagram No: 36
