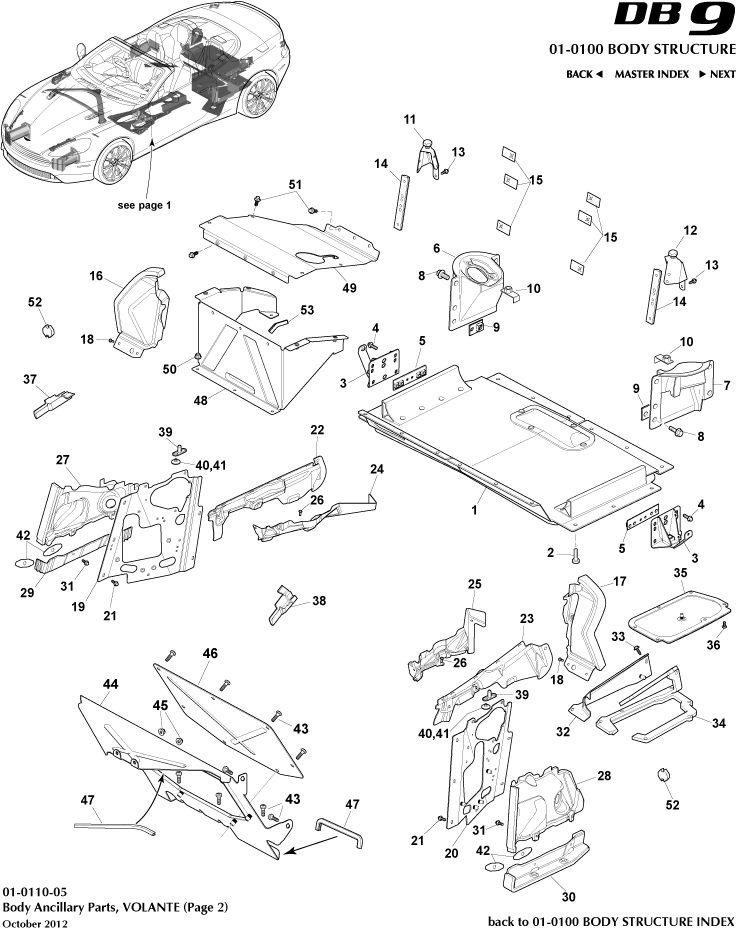

Anciliary Parts, Volante, page 2 Parts
Plate, Weld Nut, Centre
New / New
Diagram No:
15
Available to order (2-3 days delay)
STUD, M8x13.6+16, HEX SHOULDER 10
New / New
Diagram No:
18
Available to order (2-3 days delay)
Screw, M6 x 10, Pan Head Torx Type
New / New
Diagram No:
41
Available to order (2-3 days delay)
Nut, flg, M6, rear wheelarch liner
New / New
Diagram No:
45
Available to order (2-3 days delay)
Rivet, 4.65 x 13. 8 blind al dome head
New / New
Diagram No:
26
Available to order (2-3 days delay)
Screw/washer, M6 x 20, bumper attach
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
33
In stock
Nutplate, M12, rear damper mounting, front
New / New
Diagram No:
9
Available to order (2-3 days delay)
Nutplate Bracket, Rear Subframe Stabiliser, Upper
New / New
Diagram No:
5
Available to order (2-3 days delay)
Bracket, Rear, Subframe, Stabiliser
New / New
Diagram No:
3
Available to order (2-3 days delay)
Screw, M6x16 Pan Head
New / New
Diagram No:
43
Available to order (2-3 days delay)
Screw, M12x35, Hex Flange Head
New / New
Diagram No:
8
Available to order (2-3 days delay)
PANEL ASSEMBLY, FUEL TANK COMPARTMENT
New / New
Diagram No:
1
Available to order (2-3 days delay)
Panel, Window Regulator Opening Cover, RH
New / New
Diagram No:
19
Available to order (2-3 days delay)
Panel, Window Regulator Opening Cover, LH
New / New
Diagram No:
20
Available to order (2-3 days delay)
Panel, Rear Seat Heel Board, RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Panel, Battery Cover
New / New
Diagram No:
-
Available to order (2-3 days delay)
Spacer, Latch Striker
New / New
Diagram No:
-
Available to order (2-3 days delay)
Spacer, Latch Striker
New / New
Diagram No:
-
Available to order (2-3 days delay)
Panel, Rear Seat Heel Board, RH
New / New
Diagram No:
48
Available to order (2-3 days delay)
Panel, Battery Cover
New / New
Diagram No:
49
Available to order (2-3 days delay)
SPACER, LATCH STRIKER
New / New
Diagram No:
-
Available to order (2-3 days delay)
Spacer, Latch Striker
New / New
Diagram No:
-
Available to order (2-3 days delay)
SPACER, LATCH STRIKER
New / New
Diagram No:
52
Available to order (2-3 days delay)
SPACER, LATCH STRIKER
New / New
Diagram No:
-
Available to order (2-3 days delay)
SPACER, LATCH STRIKER
New / New
Diagram No:
-
Available to order (2-3 days delay)
SPACER, LATCH STRIKER
New / New
Diagram No:
-
Available to order (2-3 days delay)
Gasket, Tonneau Pump Closing Panel
New / New
Diagram No:
34
Available to order (2-3 days delay)
Se Bearing Casting, Rear Quarter, LH
New / New
Diagram No:
25
Available to order (2-3 days delay)
Cover Plate, Tonneau Pump, LHS
New / New
Diagram No:
32
Available to order (2-3 days delay)
Se Bearing Casting, Rear Quarter, RH
New / New
Diagram No:
24
Available to order (2-3 days delay)
Closing Plate Assy, Pump
New / New
Diagram No:
35
Available to order (2-3 days delay)
Panel, Rear Quarter Shedder, LH
New / New
Diagram No:
28
Available to order (2-3 days delay)
Baffle, Quarter Panel At Wheel, Housing Upper, RH
New / New
Diagram No:
16
Available to order (2-3 days delay)
Baffle, Quarter Panel At Wheel, Housing Upper, LH
New / New
Diagram No:
17
Available to order (2-3 days delay)
Panel, Rear Quarter Shedder, RH
New / New
Diagram No:
27
Available to order (2-3 days delay)
Panel, Dummy, Front Floor, LHD
New / New
Diagram No:
-
Available to order (2-3 days delay)
Member, Rear Shock Absorber Mounting, RH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
6
In stock
Member, Rear Shock Absorber Mounting, LH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
7
In stock
Washer, M6 x 25 x 1.6, Stainless Black
New
Available to order (2-3 days delay)
Nutplate, Pillar Centre Body Inner Rear
New / New
Diagram No:
14
Available to order (2-3 days delay)
Alignment Pin, Main Bearing Bracket
New / New
Diagram No:
39
Available to order (2-3 days delay)
Trough, Front Body Pillar Upper, LH
New / New
Diagram No:
38
Available to order (2-3 days delay)
Trough, Front Body Pillar Upper, RH
New / New
Diagram No:
37
Available to order (2-3 days delay)
Panel, Rear Body Pillar Closing, LH
New / New
Diagram No:
23
Available to order (2-3 days delay)
Panel, Rear Body Pillar Closing, RH
New / New
Diagram No:
22
Available to order (2-3 days delay)
Mounting bracket, tonneau cover bump stop, LH
New / New
Diagram No:
12
Available to order (2-3 days delay)
Nutplate, M14, Rear Subframe
New / New
Diagram No:
10
Available to order (2-3 days delay)
Mounting bracket, tonneau cover bump stop, RH
New / New
Diagram No:
11
Available to order (2-3 days delay)
Bracket, Quarter Window Regulator Mounting, LH
New / New
Diagram No:
30
Available to order (2-3 days delay)
Bracket, Quarter Window Regulator Mounting, RH
New / New
Diagram No:
29
Available to order (2-3 days delay)
