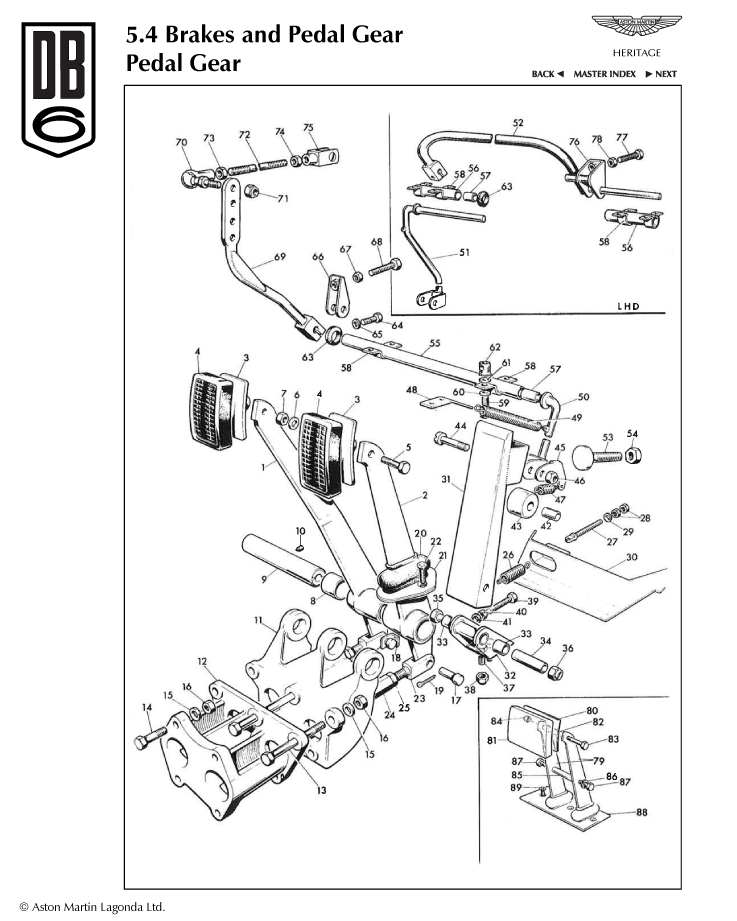

5.4 - Pedal Gear Parts
Nut, Nyloc - 2BA - thin
New / New
Diagram No:
71
Quantity:
1
Available to order (2-3 days delay)
Screw, Phillips, 1/4"
New / New
Diagram No:
22
Quantity:
4
Available to order (2-3 days delay)
Blanking grommet
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Fork end assembly, operating rod
New / New
Diagram No:
75
Quantity:
1
Available to order (2-3 days delay)
Locknut - 5/16" UNF - LH
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Socket setscrew - 2BA x 1/2"
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Stud, 5/16 UNC/UNF x 6.55
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Stud - 5/16" UNC/UNF x 3.775"
New / New
Diagram No:
nan
Quantity:
3
Available to order (2-3 days delay)
Split pin - link to door lock
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 9/32" x 5/8" OD
New / New
Diagram No:
61
Quantity:
4
Available to order (2-3 days delay)
Grommet, main harness/inner wing
New / New
Diagram No:
63
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 1/4" UNF, thin
New / New
Diagram No:
36
Quantity:
1
Available to order (2-3 days delay)
Bush, pedal levers
New / New
Diagram No:
8
Quantity:
4
Available to order (2-3 days delay)
Bush
New / New
Diagram No:
57
Quantity:
6
Available to order (2-3 days delay)
Clutch pedal lever
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Mounting Bracket - master cylinders
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Brake Pedal Levers
New / New
Diagram No:
79
Quantity:
2
Available to order (2-3 days delay)
Nut, 5/16" UNF, mounting rubber, oil filter
New / New
Diagram No:
25
Quantity:
2
Available to order (2-3 days delay)
Setscrew, 1/4 UNF x 1 1/8
New / New
Diagram No:
59
Quantity:
4
Available to order (2-3 days delay)
Setscrew, 1/4" UNF x 1/2" long
New / New
Diagram No:
37
Quantity:
2
Available to order (2-3 days delay)
Bolt, 1/4 UNF x 2
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 1/4" UNF
New / New
Diagram No:
28
Quantity:
4
Available to order (2-3 days delay)
Bolt, 5/16" UNF x 1 1/2"
New / New
Diagram No:
14
Quantity:
4
Available to order (2-3 days delay)
Setscrew, 5/16" UNF x 3/4" long
New / New
Diagram No:
64
Quantity:
1
Available to order (2-3 days delay)
Bolt, 5/16 UNF x 3 1/2
New / New
Diagram No:
13
Quantity:
3
Available to order (2-3 days delay)
Bolt, 5/16" UNF x 1"
New / New
Diagram No:
5
Quantity:
2
Available to order (2-3 days delay)
Accelerator pedal assembly
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Cover plate, rubber gaiter
New / New
Diagram No:
88
Quantity:
1
Available to order (2-3 days delay)
Intermediate spacer
New / New
Diagram No:
85
Quantity:
1
Available to order (2-3 days delay)
Master cylinder shield
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pedal pad assembly
New / New
Diagram No:
80
Quantity:
1
Available to order (2-3 days delay)
Spacer
New / New
Diagram No:
82
Quantity:
1
Available to order (2-3 days delay)
Cover plate
New / New
Diagram No:
21
Quantity:
2
Available to order (2-3 days delay)
Mounting bracket, master cylinders
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Channel, pedal spring anchor
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Operating rod
New / New
Diagram No:
72
Quantity:
1
Available to order (2-3 days delay)
Adjustable lock bracket assembly
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Spring tab, accelerator pedal
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Toggle lock bracket assembly
New / New
Diagram No:
76
Quantity:
1
Available to order (2-3 days delay)
Adjustable lock bracket assembly
New / New
Diagram No:
66
Quantity:
1
Available to order (2-3 days delay)
Rubber pad (obsolete)
New / New
Diagram No:
81
Quantity:
1
Available to order (2-3 days delay)
Accelerator pedal assembly
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Accelerator pedal assembly
New / New
Diagram No:
51
Quantity:
1
Available to order (2-3 days delay)
Return spring, accelerator pedal
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
PIVOT PIN, PEDALS
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Operating rod
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Thrust bar - push rod
New / New
Diagram No:
24
Quantity:
2
Available to order (2-3 days delay)
Spring - pedal return
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Spring retaining plate
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Support tube clip
New / New
Diagram No:
58
Quantity:
6
Available to order (2-3 days delay)
