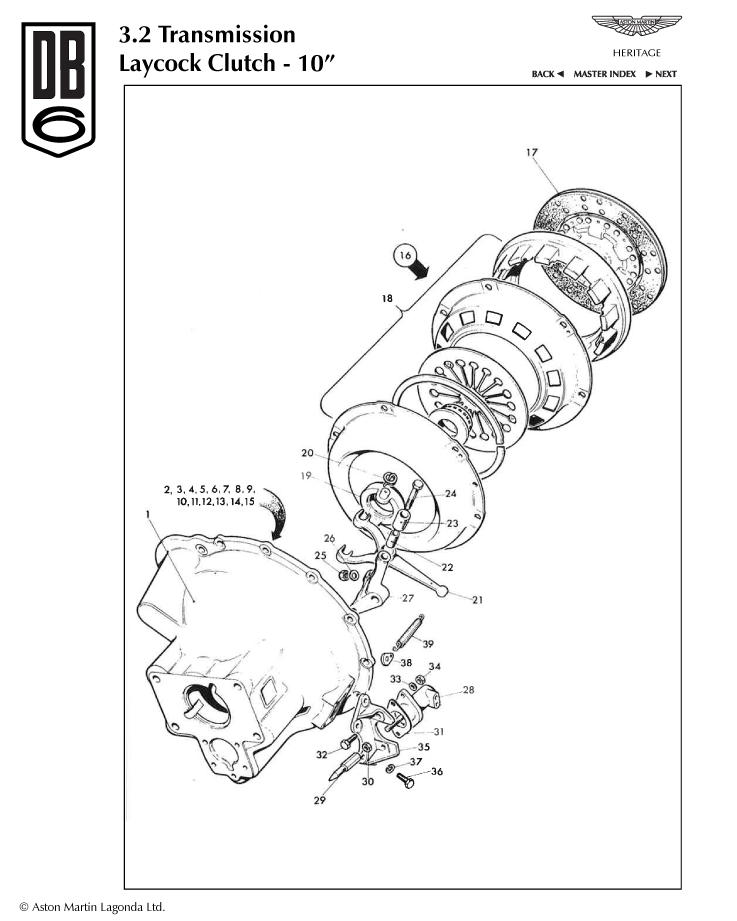

3.2 - Laycock Clutch, 10" Parts
Bolt, 8mm x 1"
New / New
Diagram No:
9
Quantity:
3
Available to order (2-3 days delay)
Bolt, 8mm x 3 1/2"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Stud - 5/16" UNC x 5/16" UNF
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Washer
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Washer, shakeproof, 5/16"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt, 10mm x 1"
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Dowel, stepped, 5/16" x 3/8" diameter x 13/16"
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
Dowel
New / New
Diagram No:
-
Quantity:
3
Available to order (2-3 days delay)
'O' ring, front cover
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Oil seal, primary shaft
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 1/2" UNF, thin
New / New
Diagram No:
15
Quantity:
4
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF, oil pump to cylinder block
New / New
Diagram No:
7
Quantity:
6
Available to order (2-3 days delay)
Clutch, flywheel, starter ring assembly
New / New
In stock
Driven plate assembly
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Locknut, 5/16" UNF, pushrod clevis
New / New
Diagram No:
30
Quantity:
1
Available to order (2-3 days delay)
Bolt, 1/2" UNF X 2 3/4"
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Fork pivot bracket
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Screw, 5/16" UNF x 1 1/4"
New / New
Diagram No:
32
Quantity:
2
Available to order (2-3 days delay)
Bolt, clutch to flywheel
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Bolt, 1/2" UNF x 2"
New / New
Diagram No:
13
Quantity:
3
Available to order (2-3 days delay)
Bolt
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Shim, 0.005"
New / New
Diagram No:
4
Quantity:
6
Available to order (2-3 days delay)
Shim, 0.002"
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Bellhousing
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Front cover
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Spring clip
New / New
Diagram No:
20
Quantity:
2
Available to order (2-3 days delay)
Cover assembly
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Bolt, mounting bracket
New / New
Diagram No:
36
Quantity:
4
Available to order (2-3 days delay)
Clutch conversion kit - Laycock to Borg and Beck
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Tab - return spring
New / New
Diagram No:
38
Quantity:
1
Available to order (2-3 days delay)
Slave cylinder assembly
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Spring - pedal return
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Release bearing
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Clutch operating fork
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Distance piece
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Retaining plate - slave cylinder
New / New
Diagram No:
31
Quantity:
1
Available to order (2-3 days delay)
Thrust finger
New / New
Diagram No:
29
Quantity:
1
Available to order (2-3 days delay)
Mounting bracket, slave cylinder
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc - 3/8" UNF - thin
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF - water pump to timing case
New / New
Diagram No:
34
Quantity:
2
Available to order (2-3 days delay)
Bearing bush
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Washer, spring, 5/16", blanks off clutch master cyl position
New / New
Diagram No:
37
Quantity:
4
Available to order (2-3 days delay)
Washer, plain, 3/8", bellcrank lever to bracket
New / New
Diagram No:
26
Quantity:
1
Available to order (2-3 days delay)
Washer, plain, 5/16, mtg rubber attach to rad lower panel
New / New
Diagram No:
8
Quantity:
6
Available to order (2-3 days delay)
Washer, spring, 3/8", bellcrank lever to bracket
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Washer, plain, 1/2"
New / New
Diagram No:
14
Quantity:
4
Available to order (2-3 days delay)
Plain washer
New / New
Diagram No:
33
Quantity:
2
Available to order (2-3 days delay)
Washer, double coil, 5/16"
New / New
Diagram No:
12
Quantity:
3
Available to order (2-3 days delay)
Thackeray washer, 3/8"
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
