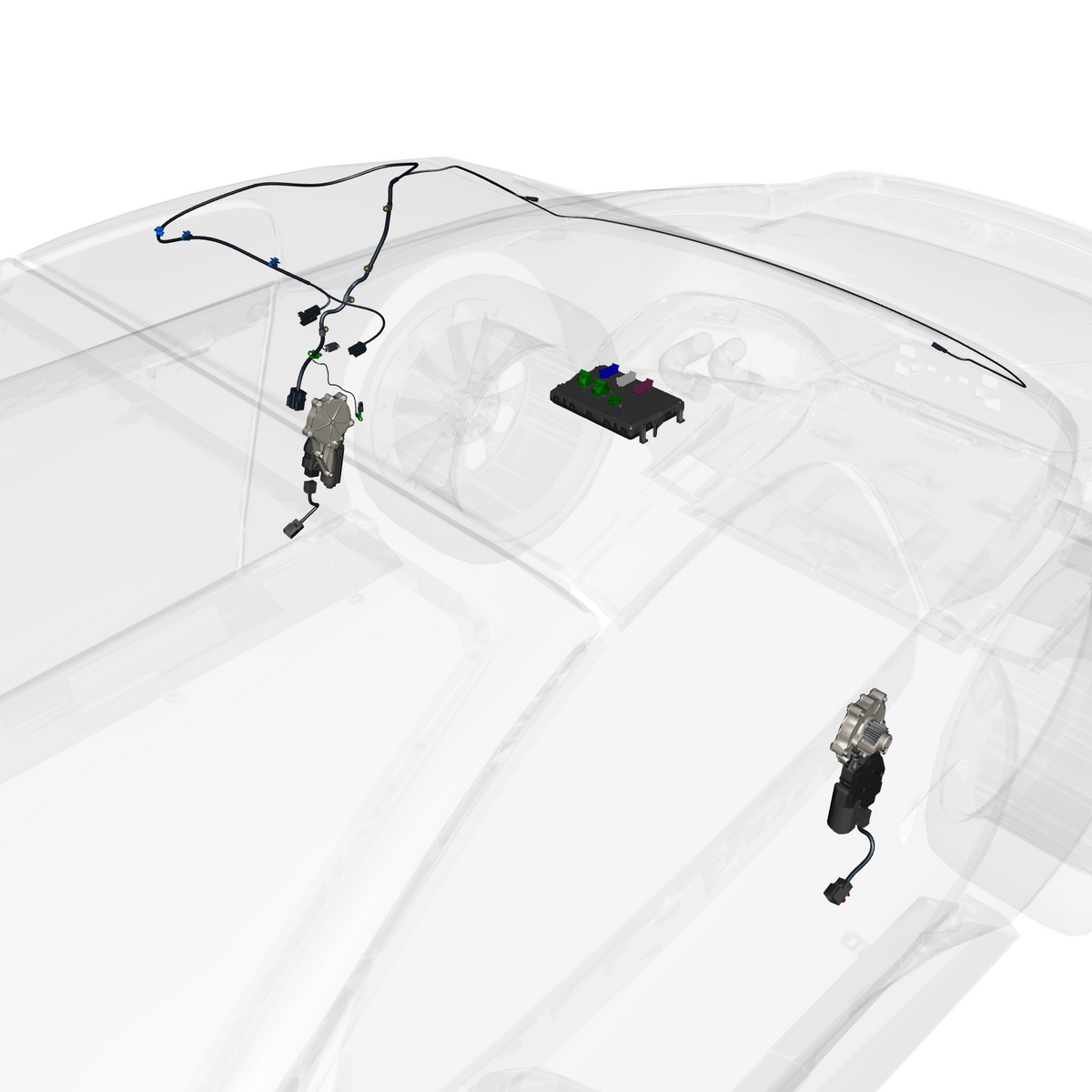

011702-10 Roof Electrical Parts
KIT, e-DRIVE
New / New
Diagram No:
810
Available to order (2-3 days delay)
FLY LEAD, e-DRIVE
New / New
Diagram No:
820
Available to order (2-3 days delay)
KIT, ROOF WIRING HARNESS
New / New
Diagram No:
800
Available to order (2-3 days delay)
MODULE, CONVERTIBLE ROOF
New / New
Diagram No:
830
Available to order (2-3 days delay)
