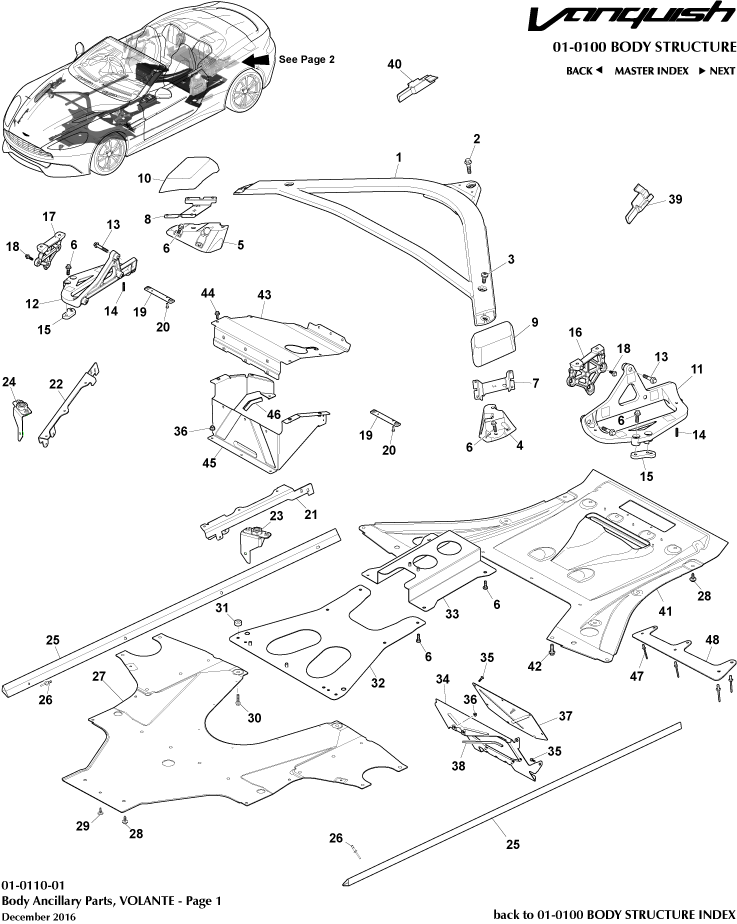

Ancillary Parts, Volante, page 1 Parts
FLANGE HEAD SCREW FASTENER M8 X 21 HEX WITH WASHER
New
In stock
M10 X 25 TORQUE DRIVE BOLT
New
Diagram No:
3
Available to order (2-3 days delay)
M10 X 30 HEX FLANGE HEAD SCREW BOLT
New
Diagram No:
42
In stock
Nut, flg, M6, rear wheelarch liner
New / New
Diagram No:
36
Available to order (2-3 days delay)
Bolt, M8 x 45, Hex Flange Head
New / New
Diagram No:
13
Available to order (2-3 days delay)
Rivet, 4.65 x 13. 8 blind al dome head
New / New
Diagram No:
20
Available to order (2-3 days delay)
Bolt, M8x35, Hex Flange Head
New / New
Diagram No:
30
Available to order (2-3 days delay)
STRUCTURAL RIVET, 6.5x14.0, BLIND
New / New
Available to order (2-3 days delay)
New / Undamaged
Diagram No:
26
In stock
Spoiler Assembly
New / New
Diagram No:
48
Available to order (2-3 days delay)
Bracket, Front Cross Brace, LH
New / New
Diagram No:
4
Available to order (2-3 days delay)
Spacer, Tunnel Reinforcement, Front
New / New
Diagram No:
31
Available to order (2-3 days delay)
Bracket, Front Cross Brace, RH
New / New
Diagram No:
5
Available to order (2-3 days delay)
Reinforcement, Door to Sill
New / New
Diagram No:
25
Available to order (2-3 days delay)
REINFORCEMENT, TUNNEL, FRONT
New / New
Diagram No:
32
Available to order (2-3 days delay)
Shield, Rear Bumper Opening
New / New
Diagram No:
-
Available to order (2-3 days delay)
BRACKET, ECU MOUNTING, RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
BRACKET, ECU MOUNTING, LH
New / New
Diagram No:
-
Available to order (2-3 days delay)
SCREW/WASHER, M6x1x19, PAN INT W/PATCH
New / New
Diagram No:
29
Available to order (2-3 days delay)
Trough, Upper Front Body Pillar, RH
New / New
Diagram No:
40
Available to order (2-3 days delay)
Trough, Upper Front Body Pillar, LH
New / New
Diagram No:
39
Available to order (2-3 days delay)
Panel, Rear Seat Heel Board, RH
New / New
Diagram No:
45
Available to order (2-3 days delay)
BRACKET ASSEMBLY, HEXCELL BLOCK, RH
New / New
Diagram No:
8
Available to order (2-3 days delay)
BRACKET ASSEMBLY, HEXCELL BLOCK, LH
New / New
Diagram No:
7
Available to order (2-3 days delay)
Panel, Battery Cover
New / New
Diagram No:
43
Available to order (2-3 days delay)
HEXCELL BLOCK ASSEMBLY, RH
New / New
Diagram No:
10
Available to order (2-3 days delay)
HEXCELL BLOCK ASSEMBLY, LH
New / New
Diagram No:
9
Available to order (2-3 days delay)
Plate, Mounting
New / New
Diagram No:
15
Available to order (2-3 days delay)
Bracket, ECU Mounting, RH
New / New
Diagram No:
12
Available to order (2-3 days delay)
Bracket, ECU Mounting, LH
New / New
Diagram No:
11
Available to order (2-3 days delay)
Screw (Taptite), M10 x 40 Hex Flange Head
New / New
Diagram No:
2
Available to order (2-3 days delay)
Tube, Passenger Air Bag Initiator, LH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
21
In stock
Tube, Passenger Air Bag Initiator, RH
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
22
In stock
Reinforcement, Hood Hinge on Body, LH
New / New
Diagram No:
16
Available to order (2-3 days delay)
Reinforcement, Hood Hinge on Body, RH
New / New
Diagram No:
17
Available to order (2-3 days delay)
Bracket, Headlamp Mounting, LH
New / New
Diagram No:
23
Available to order (2-3 days delay)
Bracket, Headlamp Mounting, RH
New / New
Diagram No:
24
Available to order (2-3 days delay)
BRACE ASSEMBLY, ENGINE COMPARTMENT
New / New
Diagram No:
1
Available to order (2-3 days delay)
EDGE PROTECTION STRIP (170mm)
New / New
Diagram No:
38
Available to order (2-3 days delay)
STUD, M6, THREADED
New / New
Diagram No:
14
Available to order (2-3 days delay)
Shield, Rear Bumper Opening
New / New
Diagram No:
41
Available to order (2-3 days delay)
Panel, Dummy, Front Floor, LHD
New / New
Diagram No:
-
Available to order (2-3 days delay)
Reinforcement Assembly, Floor Pan Front
New / New
Diagram No:
27
Available to order (2-3 days delay)
Nut plate, M6 hood striker plate
New / New
Diagram No:
19
Available to order (2-3 days delay)
Rivet, 4.8 x 13.9, Blind
New / New
Diagram No:
47
Available to order (2-3 days delay)
Edge Protection Strip
New / New
Diagram No:
46
Available to order (2-3 days delay)
Tunnel, reinforcement, centre
New / New
Diagram No:
33
Available to order (2-3 days delay)
Panel, Dummy, Front Floor, RHD
New / New
Available to order (2-3 days delay)
Used / Undamaged
Diagram No:
34
In stock
Panel, Dummy, Cover, Front Floor
New / New
Diagram No:
37
Available to order (2-3 days delay)
