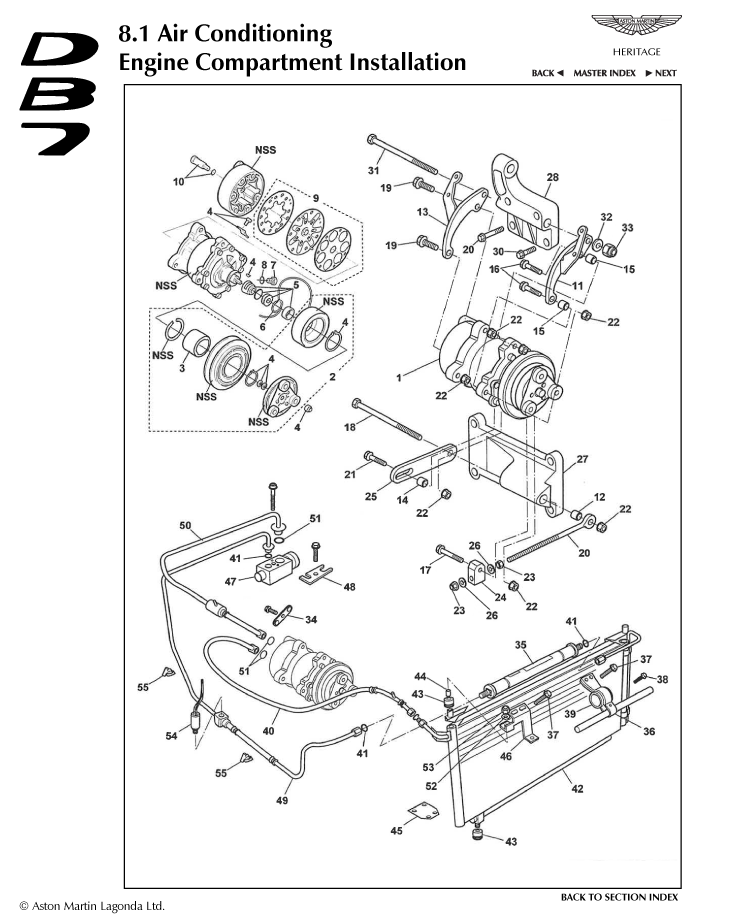

8.1 - Engine Compartment Installation Parts
EXPANSION VALVE O RING
New / New
Diagram No:
51
Quantity:
A/R
Available to order (2-3 days delay)
AIR CON RECEIVER DRIER I6 MODELS
New / New
Diagram No:
35
Quantity:
1
Available to order (2-3 days delay)
Bracket, A/C compressor/coil mounting - front
New / New
Diagram No:
11
Quantity:
1
Available to order (2-3 days delay)
Bracket, A/C compressor/coil mounting - rear
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Label, air conditioning information
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Mounting block - generator
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
'O' ring, oil filler plug
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Bearing, clutch rotor
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Seal foam, condensor
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Plug, A/C comp oil filler
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Snap ring, A/C compressor
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Clutch, A/C compressor
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
Kit, A/C high pressure valve and 'O' ring
New / New
Diagram No:
10
Quantity:
1
Available to order (2-3 days delay)
Hose assy, receiver drier to evaporator
New / New
Diagram No:
49
Quantity:
1
Available to order (2-3 days delay)
Kit, A/C compressor seals
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Hose and muffler assy, evaporator to compressor
New / New
Diagram No:
50
Quantity:
1
Available to order (2-3 days delay)
Bracket, condenser mounting - lower - LH
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Compressor - air conditioning
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Distance piece
New / New
Diagram No:
44
Quantity:
4
Available to order (2-3 days delay)
Support bracket - air conditioning hose
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Kit, A/C comp valve plate and gasket
New / New
Diagram No:
9
Quantity:
1
Available to order (2-3 days delay)
Trinary pressure switch, A/C
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Kit, A/C clutch service
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Bracket, condenser mounting - lower - RH
New / New
Diagram No:
45
Quantity:
2
Available to order (2-3 days delay)
Clamp plate
New / New
Diagram No:
48
Quantity:
1
Available to order (2-3 days delay)
Bracket, condenser mounting - upper - RH
New / New
Diagram No:
46
Quantity:
1
Available to order (2-3 days delay)
Condenser
New / New
Diagram No:
42
Quantity:
1
Available to order (2-3 days delay)
Bracket, receiver drier
New / New
Diagram No:
36
Quantity:
2
Available to order (2-3 days delay)
Mounting block, compressor
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Adjuster, compressor (eyebolt)
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Spacer, compressor rear mounting
New / New
Diagram No:
14
Quantity:
1
Available to order (2-3 days delay)
Expansion valve
New / New
Diagram No:
47
Quantity:
1
Available to order (2-3 days delay)
Clamp plate
New / New
Diagram No:
34
Quantity:
1
Available to order (2-3 days delay)
Hose assy, compressor to condenser
New / New
Diagram No:
40
Quantity:
1
Available to order (2-3 days delay)
Spacer, compressor - M10
New / New
Diagram No:
15
Quantity:
2
Available to order (2-3 days delay)
Strap, compressor
New / New
Diagram No:
25
Quantity:
1
Available to order (2-3 days delay)
Spacer, compressor front mounting
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Deflector shield
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bracket, condenser mounting - upper - LH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pad, mounting
New / New
Diagram No:
39
Quantity:
2
Available to order (2-3 days delay)
Trunnion, adjuster
New / New
Diagram No:
24
Quantity:
1
Available to order (2-3 days delay)
Bolt, hex flg M10x55
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Bolt, hex flg M10x130
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Bolt, hex flg M10x45
New / New
Diagram No:
16
Quantity:
2
Available to order (2-3 days delay)
Nut
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Bolt, hex flg M10x50
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Nut, hex flg M10
New / New
Diagram No:
22
Quantity:
7
Available to order (2-3 days delay)
"O" ring
New / New
Diagram No:
41
Quantity:
A/R
Available to order (2-3 days delay)
Washer, spring, M10
New / New
Diagram No:
26
Quantity:
2
Available to order (2-3 days delay)
Washer, plain, M10, (SVO option) front hub to knuckle
New
Diagram No:
32
Quantity:
1
In stock
