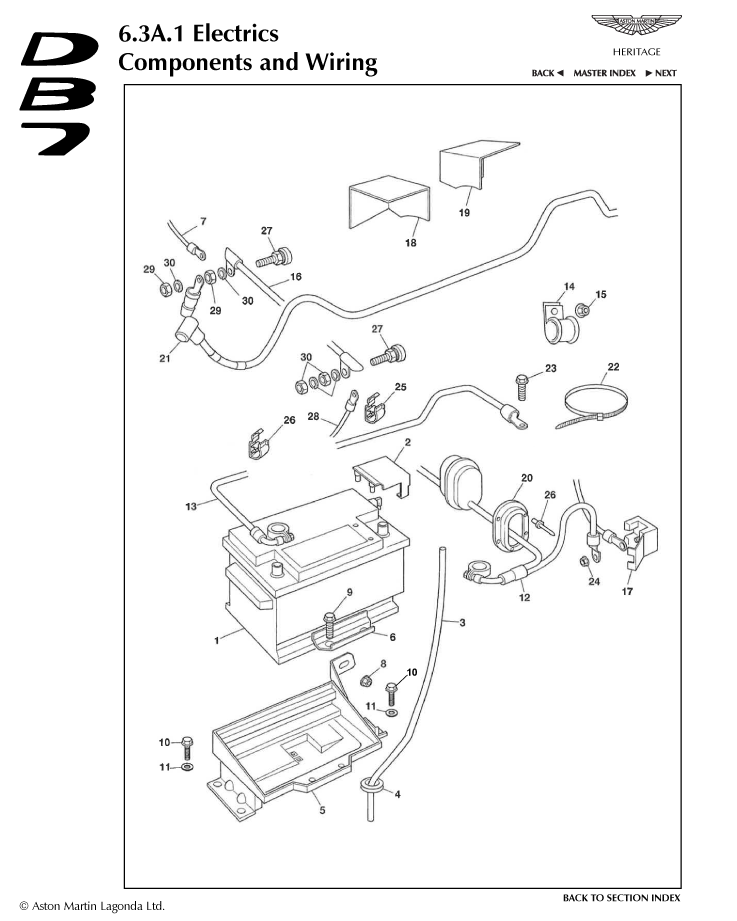

6.3a.1 - Components & Wiring Parts
Clip, high temp insul
New / New
Diagram No:
14
Quantity:
2
Available to order (2-3 days delay)
Label, battery warning
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Rubber boot, ball joint
New / New
Diagram No:
21
Quantity:
1
Available to order (2-3 days delay)
Battery trim cover
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Screw, hex head M6x12 black
New / New
Diagram No:
9
Quantity:
2
Available to order (2-3 days delay)
Rivet 1/8" x 0.295 AL S.B domed
New / New
Diagram No:
26
Quantity:
5
Available to order (2-3 days delay)
Screw, hex flg M6x22 K/LOK
New / New
Diagram No:
23
Quantity:
1
Available to order (2-3 days delay)
Screw, paint clearing M8
New / New
Diagram No:
10
Quantity:
3
Available to order (2-3 days delay)
Washer, Large OD, M8x24x1.8
New / New
Diagram No:
11
Quantity:
3
Available to order (2-3 days delay)
Nut, hex M8
New / New
Diagram No:
29
Quantity:
3
Available to order (2-3 days delay)
Tie strap, secure earth break outs
New / New
Diagram No:
22
Quantity:
1
Available to order (2-3 days delay)
Nut flg, rear lamp
New
Available to order (2-3 days delay)
Nut, hex flg M8
New / New
Diagram No:
8
Quantity:
1
Available to order (2-3 days delay)
Washer, lock, single coil, M8
New / New
Diagram No:
30
Quantity:
3
Available to order (2-3 days delay)
Battery, dry charged
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Harness clip, stud mounting
New / New
Diagram No:
25
Quantity:
14
Available to order (2-3 days delay)
Cable, terminal post/terminal post
New / New
Diagram No:
16
Quantity:
1
Available to order (2-3 days delay)
Grommet, antenna lead/body
New / New
Diagram No:
4
Quantity:
1
Available to order (2-3 days delay)
Terminal post assembly
New / New
Diagram No:
27
Quantity:
2
Available to order (2-3 days delay)
Battery post - positive
New / New
Diagram No:
17
Quantity:
1
Available to order (2-3 days delay)
Battery tray assy
New / New
Diagram No:
5
Quantity:
1
Available to order (2-3 days delay)
Cable, starter motor
New / New
Diagram No:
28
Quantity:
1
Available to order (2-3 days delay)
Cover, terminal post - RH Batt pos
New / New
Diagram No:
18
Quantity:
1
Available to order (2-3 days delay)
Clamp, battery
New / New
Diagram No:
6
Quantity:
1
Available to order (2-3 days delay)
Cover, Sumitomo
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Plate, clamping
New / New
Diagram No:
20
Quantity:
1
Available to order (2-3 days delay)
Battery cable negative
New / New
Diagram No:
13
Quantity:
1
Available to order (2-3 days delay)
Tube, battery vent
New / New
Diagram No:
3
Quantity:
1
Available to order (2-3 days delay)
Battery
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Cable, alternator to terminal post
New / New
Diagram No:
7
Quantity:
1
Available to order (2-3 days delay)
Cover, terminal post - LH Batt pos
New / New
Diagram No:
19
Quantity:
1
Available to order (2-3 days delay)
Battery cable positive
New / New
Diagram No:
12
Quantity:
1
Available to order (2-3 days delay)
Cover, battery terminal
New / New
Diagram No:
2
Quantity:
1
Available to order (2-3 days delay)
