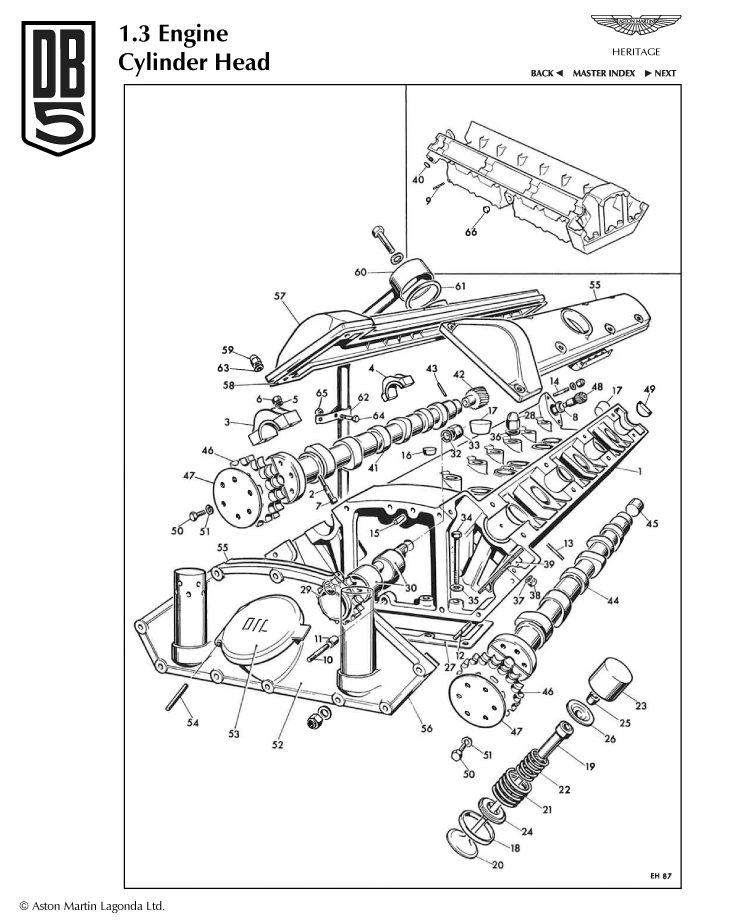

1.3 - Cylinder Head Parts
Dowel, 1/4" Dia x 1/2" Head location
New / New
Diagram No:
15
Quantity:
1
Available to order (2-3 days delay)
Bolt, 1/4" UNF 3/4"
New / New
Diagram No:
38
Quantity:
4
Available to order (2-3 days delay)
Screwed plug, 1" BSP taper
New / New
Diagram No:
17
Quantity:
3
Available to order (2-3 days delay)
Stud, 5/16" x 1 15/32", exhaust manifold
New / New
Diagram No:
13
Quantity:
12
Available to order (2-3 days delay)
Tension pin
New / New
Diagram No:
43
Quantity:
1
Available to order (2-3 days delay)
Plug, camshaft
New / New
Diagram No:
45
Quantity:
1
Available to order (2-3 days delay)
Stud, exhaust manifold, water outlet
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Tension bush, camshaft caps
New / New
Diagram No:
7
Quantity:
17
Available to order (2-3 days delay)
Plug, 3/4" BSP taper
New / New
Diagram No:
66
Quantity:
2
Available to order (2-3 days delay)
Screwed plug, 1/2" BSP taper
New / New
Diagram No:
16
Quantity:
8
Available to order (2-3 days delay)
Plain washer - 1/4" camshaft cover
New / New
Diagram No:
63
Quantity:
20
Available to order (2-3 days delay)
Screw, 2BA x 2" long
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Washer, 3/16" ID x 1/2"
New / New
Diagram No:
-
Quantity:
A/R
Available to order (2-3 days delay)
Mills pin, 1/8" diameter
New / New
Diagram No:
54
Quantity:
1
Available to order (2-3 days delay)
Nut, Nyloc, 5/16" UNF, oil pump to cylinder block
New / New
Diagram No:
6
Quantity:
16
Available to order (2-3 days delay)
Rubbing strip assembly - RH
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Cylinder head - studded assembly
New / New
Diagram No:
1
Quantity:
1
Available to order (2-3 days delay)
Cylinder head gasket
New / New
Diagram No:
27
Quantity:
1
Available to order (2-3 days delay)
Rubbing strip assembly - LH
New / New
Diagram No:
39
Quantity:
1
Available to order (2-3 days delay)
Tappet - 0.1260" - 0.1280"
New / New
Diagram No:
23
Quantity:
12
Available to order (2-3 days delay)
Tappet - 0.1290" - 0.1310"
New / New
Diagram No:
-
Quantity:
12
Available to order (2-3 days delay)
Tappet - 0.1320" - 0.1340"
New / New
Diagram No:
-
Quantity:
12
Available to order (2-3 days delay)
Bolt, 5/16" UNF 2 7/8"
New / New
Diagram No:
34
Quantity:
4
Available to order (2-3 days delay)
Exhaust valve
New / New
Diagram No:
20
Quantity:
6
Available to order (2-3 days delay)
Camshaft cover assembly
New / New
Diagram No:
57
Quantity:
2
Available to order (2-3 days delay)
Breather tube assembly
New / New
Diagram No:
-
Quantity:
2
Available to order (2-3 days delay)
Camshaft Bearing Cap - centre
New / New
Diagram No:
4
Quantity:
4
Available to order (2-3 days delay)
Front cover
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Camshaft Bearing Cap - front
New / New
Diagram No:
3
Quantity:
2
Available to order (2-3 days delay)
Camshaft Bearing Cap - rear
New / New
Diagram No:
nan
Quantity:
2
Available to order (2-3 days delay)
Front cover assembly
New / New
Diagram No:
52
Quantity:
1
Available to order (2-3 days delay)
Stud, camshaft caps
New / New
Diagram No:
2
Quantity:
16
Available to order (2-3 days delay)
Breather cap assembly - RH
New / New
Diagram No:
60
Quantity:
1
Available to order (2-3 days delay)
Washer, valve spring
New / New
Diagram No:
24
Quantity:
12
Available to order (2-3 days delay)
Inlet valve
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Exhaust camshaft assembly
New / New
Diagram No:
44
Quantity:
1
Available to order (2-3 days delay)
Valve guide, inlet
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Valve guide, exhaust
New / New
Diagram No:
19
Quantity:
6
Available to order (2-3 days delay)
Valve spring - inner
New / New
Diagram No:
22
Quantity:
12
Available to order (2-3 days delay)
Valve seat insert, inlet
New / New
Diagram No:
-
Quantity:
6
Available to order (2-3 days delay)
Valve seat insert, exhaust
New / New
Diagram No:
18
Quantity:
6
Available to order (2-3 days delay)
Pulley shield
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Top joint - front cover
New / New
Diagram No:
55
Quantity:
1
Available to order (2-3 days delay)
PLUG, DISTRIBUTOR DRIVE GEAR
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
SPROCKET, CAMSHAFT
New / New
Diagram No:
46
Quantity:
2
Available to order (2-3 days delay)
Filler cap, magnetic
New / New
Diagram No:
53
Quantity:
1
Available to order (2-3 days delay)
Gear, distributor
New / New
Diagram No:
42
Quantity:
1
Available to order (2-3 days delay)
Tensioner sprocket and bush assembly, 21 teeth
New / New
Diagram No:
-
Quantity:
1
Available to order (2-3 days delay)
Pipe clip - RH
New / New
Diagram No:
62
Quantity:
1
Available to order (2-3 days delay)
ROCKER COVER CAMSHAFT COVER GASKET
New
In stock
