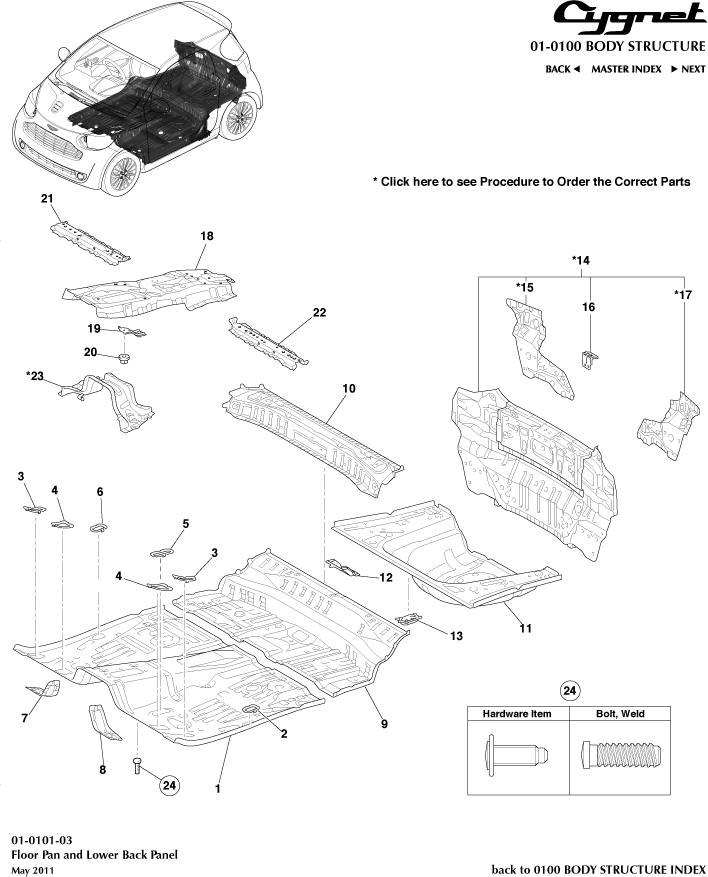

Floor Pan & Lower Back Panel Parts
Nut, EL91
New / New
Diagram No:
20
Available to order (2-3 days delay)
Hardware Item
New / New
Diagram No:
24
Available to order (2-3 days delay)
Bolt, Weld
New / New
Diagram No:
-
Available to order (2-3 days delay)
Reinforcement, Body Lower Back RH
New / New
Diagram No:
17
Available to order (2-3 days delay)
Reinforcement, Body Lower Back RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Bracket, Rear Bumper Cover, No.2
New / New
Diagram No:
16
Available to order (2-3 days delay)
Reinforcement, Body Lower Back Panel RH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Reinforcement, Body Lower Back Panel RH
New / New
Diagram No:
15
Available to order (2-3 days delay)
Bracket, Rear Floor Heat Insulator, No.4
New / New
Diagram No:
19
Available to order (2-3 days delay)
Pan, Rear Floor
New / New
Diagram No:
11
Available to order (2-3 days delay)
Bracket, Actuator Cover, No.3 RH
New / New
Diagram No:
13
Available to order (2-3 days delay)
Plate, Front Floor Side LH
New / New
Diagram No:
-
Available to order (2-3 days delay)
Bracket Sub-Assy, Front Seat Mounting, Inside LH
New / New
Diagram No:
18
Available to order (2-3 days delay)
Member Sub-Assy, Rear Floor Cross
New / New
Diagram No:
9
Available to order (2-3 days delay)
Panel Sub-Assy, Body Lower Back
New / New
Diagram No:
-
Available to order (2-3 days delay)
Plate, Front Floor Side Rear RH
New / New
Diagram No:
6
Available to order (2-3 days delay)
Reinforcement, Front Floor Side, RH
New / New
Diagram No:
7
Available to order (2-3 days delay)
Panel Sub-Assy, Body Lower Back
New / New
Diagram No:
14
Available to order (2-3 days delay)
Cover, Front Floor Hole
New / New
Diagram No:
5
Available to order (2-3 days delay)
Pan, Front Floor
New / New
Diagram No:
1
Available to order (2-3 days delay)
Reinforcement, Rear Floor Crossmember, No.2
New / New
Diagram No:
12
Available to order (2-3 days delay)
Member, Rear Floor Cross, Front
New / New
Diagram No:
10
Available to order (2-3 days delay)
Member Sub-Assy Front Floor Cross RH
New / New
Diagram No:
21
Available to order (2-3 days delay)
Plate, Front Floor Side RH
New / New
Diagram No:
3
Available to order (2-3 days delay)
Plate, Front Floor Side Rear LH
New / New
Diagram No:
2
Available to order (2-3 days delay)
Reinforcement, Front Floor Side, LH
New / New
Diagram No:
8
Available to order (2-3 days delay)
Support Sub-Assy, Fuel Tank, Front
New / New
Diagram No:
-
Available to order (2-3 days delay)
Support Sub-Assy, Fuel Tank, Front
New / New
Diagram No:
23
Available to order (2-3 days delay)
Member Sub-Assy Front Floor Cross LH
New / New
Diagram No:
22
Available to order (2-3 days delay)
Cover, Front Floor Hole, RH
New / New
Diagram No:
4
Available to order (2-3 days delay)
Cover, Front Floor Hole, LH
New / New
Diagram No:
-
Available to order (2-3 days delay)
